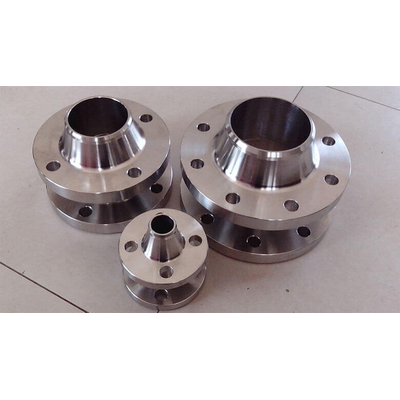

PM Industries - Model Duplex 2205 -Stainless Steel Flange

There are many impressive key properties and advantages to using this grade. One of the main advantages of UNS S32205 flanges is their high corrosion resistance. The duplex microstructure of the steel provides improved resistance to pitting, crevice corrosion, and stress corrosion cracking. As a result, these flanges are suitable for use in severe environments like chlorides, acids, and seawater. They are widely employed in the oil and gas industry, chemical processing, marine applications, and desalination plants.

If austenitic stainless steel is compared with UNS S32205 duplex, then it can be easily seen that UNS has immense strength and ductility. It allows flanges to endure high stress and high pressure. Similarly, while reducing the weight significantly,. As a result, these flanges are ideal for demanding applications requiring structural integrity and endurance.

• Standards: ANSI/ASME B16.5, B16.48, ANSI Flanges, GOST Flanges, DIN Flanges, EN-1092, B16.47 Series A & B, ASME Flanges, EN Flanges, AWWA Flanges, BS Flanges.
• JIS Standard: 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K
• DIN FLANGES: DIN 2527, 2627, 2631, 2656, 2576, 2673, 2629, 2628, 2566, 2641, 2637, 2655, 2634, 2636, 2632, 2633, 2638, 2642, 2573, 2635.
• Pressure Rating: Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
• Types: Threaded, Plate, Screwed, Forged.
• Supporting material: Gasket, Ring Joint, Flange Bolts
• Size range: 1/2" (15 NB) to 48" (1200NB) DN10~DN5000
• Production technique: Forged, machined and Heat treated
• Available Flange Type: Weld Neck Flanges, RTJ Flanges, Slip On Flanges, Spectacle Blind Flanges, Flanges Gaskets, Square Flanges, Standard Insert Flanges, High Hub Blinds Flanges, Flat Flanges, forged flanges, Weldo / Nipo Flanges, Jacket Insert Flanges, Tongue groove Flanges, Blind Flanges, Socket Weld Flanges, Large diameter Flanges, Long Weld Neck Flanges, Spacer Blinds, SWRF Flanges, SORF Flanges, Angle Face Rings Flanges, Spades Ring Spacers Flanges, WNRF Flanges, Screwed Flanges, Insert Flanges, flanges bolts, cf flange, Lap Joint Flanges, ASME B16.36 Orifice Flanges, Plate Flange, Expander Flanges, Ring Type Joint Flanges, Loose Flanges, Reducing Flanges, puddle flange, Threaded Flanges, blank flange, vacuum flange.
• Connect Type/ Flange Face Type: Ring Type Joint (RTJ), Flat Face (FF), Tongue & Groove, Small Male-Female (SMF), Lap-Joint Face (LJF), Raised Face (RF), Large Male-Female (LMF), Small Tongue.
• Custom design: As per your drawing
• Test: Direct-reading Spectrograph, X-ray detector, UItrasonic flaw detector, Magnetic particle detector, Hydrostatic testing machine.
• Origin: Indian / USA / Korean / West Europe / Japan
• Pressure Class: PN 6 TO PN 100
• Thickness: Normal Pipe Size ≤ 18
• Bore Diameter: Normal Pipe ≤ 10
• High Temperature: Above 200°C (400°F) For Class 150 Or Above 400°C (750°F)
• Low Temperature: Above -29 Degree C (−20°F)
• Coating/Surface Treatment:: Zinc Plated, Anti-rust Paint, Oil Black Paint, Yellow Transparent, Cold and Hot Dip Galvanized.
• European/African/Russian Standard Flanges: Available
• Gaskets Types: Full Face, Metallic Ring, Flat Ring Gasket
• Marking Standard    Name of Manufacturer
• ScheduleType of Flange Facing
• Pressure ClassNominal Pipe Size, etc
• Test Certificates    EN 10204/3.1B, NACE MR0103, NACE MR0175
• Raw Materials Certificate
• 100% Radiography Test Report
• Third Party Inspection Report, etc
