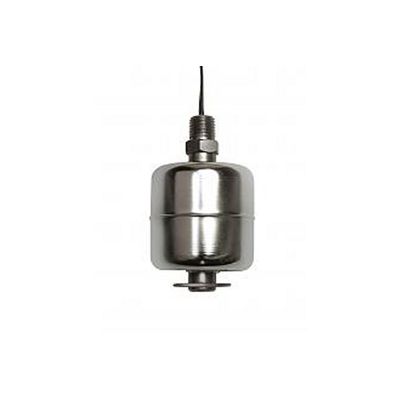

Madison - Model M5600 -Stainless Steel Float Level Switch, 1/4` NPT, 60 watt
Float switch, stainless steel, 1/4" NPT, 60 watt. Detects high/low levels in a container. 316 SS is frequently used in food processing. Ideal for high-temperature, medical and petrochemical applications, as well as plating processes. Suitable in applications where superior corrosion resistance is required. All NPT vertical switches can be extended with pipe to meet custom tank depths.
Most popular related searches
float level switch
float switch
level switch
stainless steel float switch
level sensor
well plate
float level sensor
float switch sensor
- Approvals : CE, UL Haz. Loc., CSA Haz. Loc., NSF
- Electrical Ratings : 240 VAC, 0.40A; 120 VAC, 0.50A; 120 VDC, 0.20A; 24 VDC, 0.50A
- Float Diameter : 2.13"
- Stem Material : 316 Stainless Steel
- Float Material : 316 Stainless Steel
- Float SG : 0.55
- Lead Wires : 24", 22 AWG, Teflon Insulated
- Max Pressure : 200 PSI
- Max Temperature : 392°F (200°C)
- Mounting : 1/4" NPT
- Note : Electrical Switch Ratings are shown for resistive loads as tested by UL at different voltages. See our Electrical Considerations for typical inductive or capacitive load considerations. The wire clips are made to be removed and replaced up to 10 times, while maintaining a holding force of 3 lb.
- Switch Rating : 60 Watt, SPST
- Type : Full Size Switch
