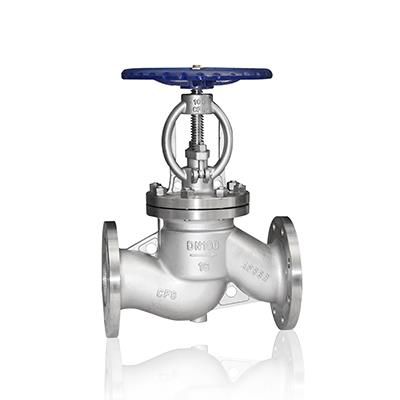

Robmet - Model PN 64 -Stainless Steel Globe Valve

Working Temperature:

• -29°C...+425°C

Design Features:

• corp drept cu flange sau cu capete sudura/flanged or butt welded straight body
• tija ascendenta cu filet exterior/rising stem with outside screw
• inchidere-ventil plat cu etan^are plana/flat disc and seat

Sealing Surfaces:

• flange plan umar (PU) /raised face flanges (RF)
• capete sudura(CS) / butt weld ends (BW)
• varianta de actionare cu reductor manual sau electric/available with gear or electric actuator

Execution:

• basic design according to DIN 3356
• face to face according to EN 558   12 series
• DIN3202 part I line F2 for raised face flanges (RF)
• DIN3202 part 2 S3 for butt weld ends (BW)
• flanges according to DIN2546
• butt weld ends according to DIN3239
• testing according to DIN3230

On Request:

• threaded plug
