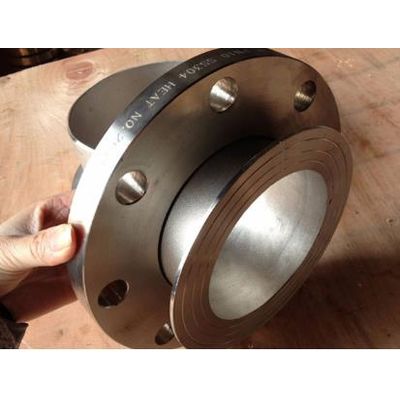

Centerway - Stainless Steel Lap Joint Flange

SHARE

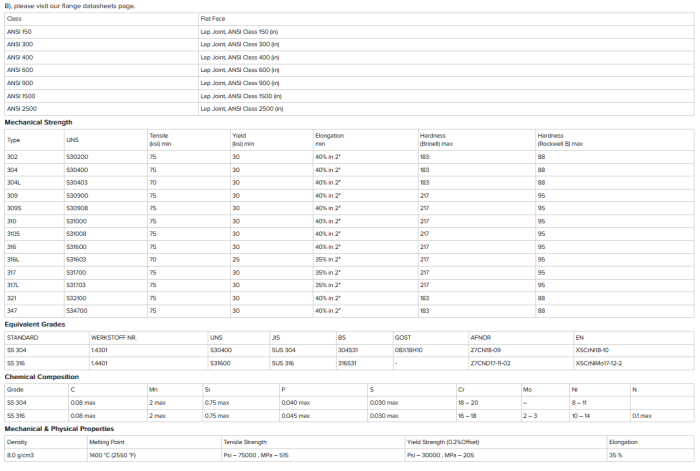

The datasheets we have on ihis site are shown below. For simplicity sake, only datasheets that adhere toBl6.5 are shown. ASME B16.5 covers flange dimensions (tomVi`to 24". For sizes larger than lhis(ASME B16.47 Series A.

Most popular related searches
stainless steel flange
ASTM A182
flanged pipe
  • Standards:  ANSI B165. ANSI B16.47 Series A & B. MSS SP44. ASA API-605. AWWA. Custom Drawings
  • Sue:  V2" NB TO 48" NB
  • Designation:  A182 / A 240. SA182 / SA 240
  • C ass: ISO*. 300*. 400*. 600*. 900*. 1S00* & 2S00*.
  • Grade: ASTM A182 F304.304L. 304H. 316. 316Ti. 316H. 316U 316LN. 309S. 309H. 310S. 310H.317.317U 321.321H. 347.347H. 201.202. 904L ETC.

Lap Joint Flanges (LJ Flanges) are used on piping tilted with lapped pipe or with lap joint stub ends the combined initial cost ot the two items being approximately one-third higher than that of comparable welding neck llanges.
