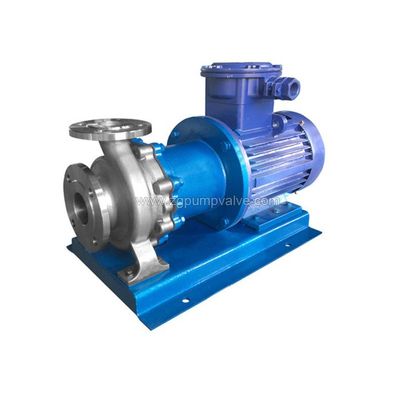

Zigong - Model CQB -Stainless Steel Magnetic Drive Pump
CQB type stainless steel magnetic drive pump (also known as magnetic centrifugal pump) is applied by modern magnetic principle. It adopts internal and external magnetic steel push-pull transmission. The magnetic circuit is sealed in the isolation sleeve with the isolation sleeve, and the static seal is used to seal the seal.
Other pump mechanical seals can not avoid the drawbacks of running and dripping. When the motor drives the outer magnetic steel of the magnetic coupling to rotate, the magnetic flux passes through the gap and the isolation sleeve, acts on the inner magnetic steel, causes the pump rotor to rotate synchronously with the motor, and transmits torque without mechanical contact. The pump is made of corrosion-resistant stainless steel, steel jade ceramics, tetrafluoro graphite and other materials.There are various materials available for our magnetic drive pump, including cast iron,stainless steel SS304, SS316, SS316L, 904L, duplex stainless steel CD4MCu, 2205, 2507, Alloy 20, Hastelloy, Titanium, Monel, Nickel...
- Flow rate: Q=3.2～100（m³/h）
- Total head: H=12～80 (m)
- Speed: n=2900rpm
- Caliber: 32～100mm
- Temperature: T=--20～100℃
- The pump body of the CQB stainless steel magnetic drive pump is made of corrosion-resistant stainless steel (SS304/316/316L/2205).
- The outer magnetic steel of CQB stainless steel magnetic drive pump is made of rare earth magnetic steel and will never be demagnetized.
- The impeller of CQB stainless steel magnetic drive pump has the characteristics of high strength, non-deformation, corrosion resistance, smooth flow path, superior water conservancy performance, small hydraulic friction loss and high efficiency.
- CQB stainless steel magnetic drive pump has been developed and improved by our company for many years. The utility model has the advantages of compact structure, beautiful appearance, small volume, low noise, reliable operation and convenient use and maintenance.
- QB stainless steel magnetic drive pump is widely used in petroleum, chemical, pharmaceutical, electroplating, food, film photofinishing, scientific research institutions, defense industry and other units. Pumping acid, lye, oil, rare precious liquid, venom, volatile liquid, and circulating water equipment, filter matching. Especially the transportation of flammable, explosive and volatile liquids.
