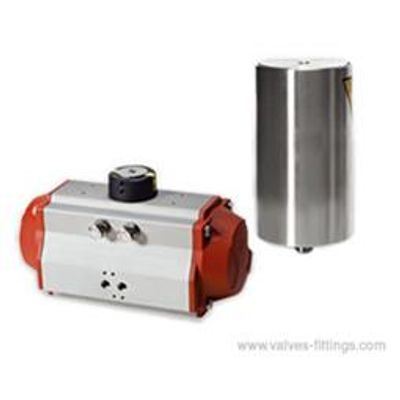

Adamant Valves - Model AV-11A -Stainless Steel Pneumatic Actuator

Application: AV-11A-A series vertical actuator applies to different kinds of valves for stainless steel pipeline system, such as butterfly valves, butterfly type ball valves, ball valves. Materials: Steel parts: AISI 304 Seal: VMQ/FPM/EPDM Standard Design: Vertical type with stainless steel 304 material Three types available: Normally closed (NC)-Air to open and spring to close; Normally open (NO)-Air to close and spring to open; Air to Air (AA)-Air to open air to close Both single mount and double mount available as customers require. Air pressure: 5-8 bar (72-116psi) Rotary angle: 90 degrees Air tube connection: R1/8" G1/8" With or without C-top and position sensor as customers require.
