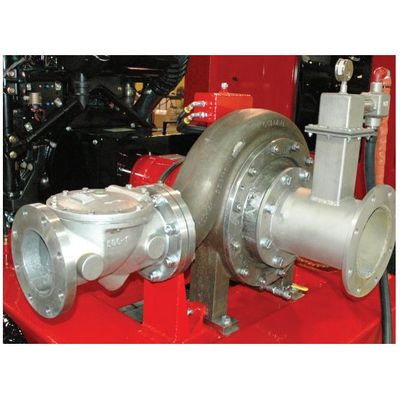

Global Pump - Stainless Steel Pump
Electric Submersible Stainless Steel Pumps from Global Pump are designed for service in light acid or salt water applications. The upper cover, pump casing, impeller, motor frame and motor shaft are made of 304 Stainless Steel for superior corrosion resistance. The Global Pump Stainless Steel Pump features an environmentally friendly, oil bathed, Silicon Carbide/Silicon Carbide double mechanical seal. Viton o-rings seal the mechanical seal chamber, motor housing and the motor frame. The air filled, 3600 rpm motors come standard with high amperage shut down to guarantee automatic shut off before motor burn out The power cable provided is a generous 50 feet and is protected from wicking by an epoxy pot¬ted cable entry. Global Pump Stainless Steel pumps are ideal for situations requiring effluent dewatering, corrosive sumps, chemical spills and collection sumps. The pumps can be installed on a guide rail system if required.
Electric Pumps (EL Series)
- Power: from 5 to 150 HP
- Capacity: from 150 to 4500 gpm (34 to 1022 m3/h)
- Head: from 15 to 275 ft (5 to 84 m)
- Discharge distance: up to 3300 feet (1000 m)
Hydraulic Pumps (HY Series)
- Power: from 24 to 400 Horse Power
- Capacity: from 165 to 5300 gpm (37 to 1204 m3/h)
- Head: from 15 to 275 ft (5 to 84 m)
- Discharge distance: up to 4300 ft (1300 m)
Varied Applications

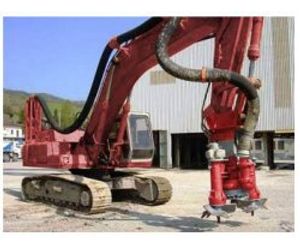

Removal of silt build up at marinas, harbors, dock loading facilities, etc. / Waste sludge handling / Tank clean out / Waste collection ponds / Dredging deep deposits (up to 120 m deep) / Sands mining / Barge unloading / Waste collection pit / Ash sumps / Dredging waste ponds / Clean up sumps / Gold tailings reclamation / Settling and collection ponds / Underground slimes collection ponds / Conveyor tunnel sumps / Coal tailings relocation / Crusher sumps / Grinding area sumps / Flotation area sumps / / Truck wash sumps / Mill scale pits / Coke plant scale pit / Blast furnace slag pit / Water treatment sumps / Clean out caissons in construction / Transfer of bentonite slurry / Overburden removal / Reclaiming beaches / River, lake and canal clean out
- Electric motors are all Class H insulated and have a minimum 1.25 service factor.
- Pumps are equipped with a unique lip seal system to prevent material from penetrating the seal.
- High quality materials ensure long life of all components.
- Temperature sensor, embedded in the electric motor, and Moisture sensor, in the oil chamber, are available options to protect the pump in the most demanding application.
- Adjustable Hi-Chrome suction side Wear Plate maintains maximum performance for extended periods by a simple adjustment of the gap between the wear plate and the impeller.
- Replaceable wear parts: casings, impellers, wear plates all can be replaced independently.
- Lube Oil Inspection Ports: a wideangle port outside the pump ensures easy inspection of shaft seal oil levels as well as providing easy access for oil replacement.
- The excavating action is created by the Hi-Chrome agitator blades that lift settled sediments which then get sucked into the pump, creating a continuous flow of concentrated slurry.
