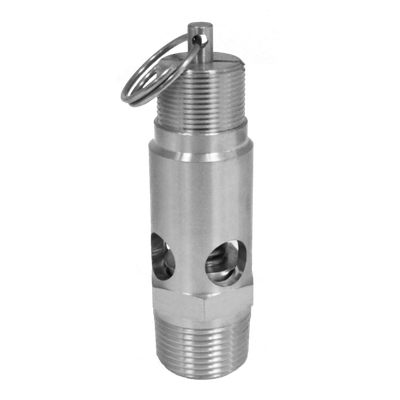

Kingston - Model KSV30CR -Stainless Steel Safety Valve for Process Control
FromKingston Valves
The KSV30CR is a robust stainless steel soft seat safety valve designed to handle a wide range of pressure applications, rated between 20 to 300 PSI. This valve is ideal for venting applications into the atmosphere and features a variety of disc options, including EPDM, FKM, and silicone, to meet specific operational needs. With threads available in BSPP and BSPT, it provides versatility for integration in various systems, especially within air compressors, the automotive industry, food and beverage dispensing, and broader process control equipment. The valve has a broad operational temperature range from -20°F to 400°F, making it suitable for various environmental conditions. Certified under National Board/ASME Section XIII, it meets stringent safety standards. Additionally, it carries a Canadian Registration Number (CRN) ensuring compliance across regions. This valve is critical for ensuring operational safety and reliability in industrial processes.Most popular related searches
process control system
soft seated valve
control valve
digital temperature controller
silicone sealant
automotive air
valve operator
The Kingston Model KSV30 Stainless Steel ASME Code Low Profile Safety Valve is an ASME Code Certified, precision machined valve, designed to API 527 Seat Tightness Standard.
- Stainless Steel construction for long-lasting performance in corrosive environments.
- Compact in size yet provides high flow capacities.
- FKM Disc standard.
- Tested with National Board Approved Quality Assurance Process.
- Bodies are laser engraved with both the UV and NB symbols.
Style: Vent to Atmosphere
Size: 1/2"
Pressure Range: 20 – 300 PSI
Material: Stainless Steel
Seat Type: Soft Seat
Options: BSPP Threads, BSPT Threads, EPDM Disc, FKM (Fluroelastomer) Disc, O₂ Cleaning, Silicone Disc, Steam, Thread Sealant
Certifications: Canadian Registration Number (CRN), National Board/ASME Section XIII
Applications: Air Compressors, Automotive, Food & Beverage Dispensing, Process Control Equipment
Temperature Range: -20°F to 400°F
