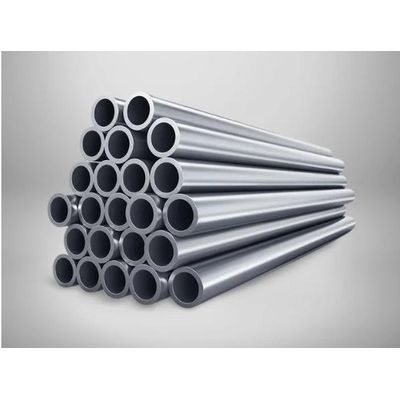

Ashapura - Model 317 -Stainless Steel Seamless Pipe
Stainless Steel 317 Seamless Pipe, DIN 1.4449 Seamless Tube, ASME SA312 SS 317 Polished Pipe, UNS S31700 Seamless Mirror Finish Pipe, ASTM A312 SS 317 Boiler Pipe. Alloy 317 is a low-carbon austenitic steel alloy. The stainless steel 317 pipe/tube structure has a high concentration of chromium, nickel, and molybdenum. The increased chromium content offers this alloy more corrosion resistance than the 316 grade. The corrosion resistance of stainless steel 317 pipe is excellent against chloride pitting and crevice corrosion. Because of their superior mechanical qualities, these pipes have a decent density of 8 gm/cm3 and can be enlarged by at least 35%. Both 317 and 317L stainless steel pipes are built to be strong and corrosion-resistant. Because it contains less carbon, 317L has somewhat superior welding characteristics. We are the country’s top provider of 317 stainless steel pipe. Our company’s objective is to make essential items affordable costs for everyone.
ASTM, ASME, and API dimensions are available for SS 317 tubing. Each of these tubes is available in a variety of schedules to fit a variety of needs. 317 stainless steel tubing has outstanding formability and is widely used in the power generating, condenser, and petrochemical industries, among other applications. Welding or seamless methods are typically used to create pipes and tubes. The minimum tensile strength of317 SS seamless pipeis 75000psi, while the minimum yield strength is 30000psi. They come in lengths of up to 30 meters. The outside diameter of theUNS31700 welded pipeis 6-610 mm. These pipes are created by joining steel sheets together. They are long-lasting and simple to care for.WNR. 1.4449 ERW pipeis made from a series of steel coils that are fusion welded in spiral or longitudinal shape. They are well-known for their resilience to both high and low frequencies.
- Seamless Pipes Specifications: ASTM A312 / ASME SA312
- Dimensional specification: ANSI/ASME B36.19M, ANSI/ASME B36.10M
- Seamless Pipe Size: 1 / 8" NB - 24" NB
- Outside Diameter: 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Steel Tubes available Ex-stock
- Seamless Pipes Manufacturing Shapes: Hydraulic, Round, Square, Hex, Honed
- Manufacturing Techniques: Normalized & as Rolled
- Seamless Pipe Schedule Thickness Range: SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
- Seamless Pipes End Types: Plain End, Beveled End, Treaded One End, TBE (Treaded Both Ends)
- Surface Finish: No.1, No.4, No.8 Mirror Finish, 2B
- Value Added Services: Cutting, Beveling, Polishing, Threading, Destructive, Non Destructive, Ultrasonic Testing
- Inspection and Test Reports: EN 10204 3.1, Mill Test Certificates, Chemical Reports, PMI Test Reports, Mechanical Reports, Third Party Inspection, NABL Approved Lab, Visual Inspection, Destructive Test and Non Destructive Test Reports
- Outside Finish: 2B, No.4, No.1, No.8 Mirror Finish for Stainless Steel Seamless Pipes, Finish as per customer Requirements
- Delivery Condition: Annealed and Pickled, Polished, Bright Annealed, Cold Drawn
- Heat Treatment: Normalized, Normalized & Tempered
- Packing of Seamless Pipes: Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests
- Specials: Sizes and Specifications other than above can be on request
