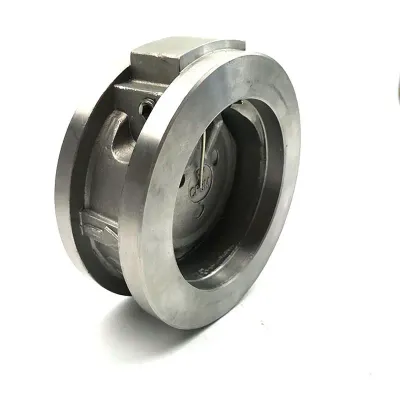

Laizhou Dongsheng Valve Co., Ltd - Stainless Steel Single Disc Swing Check Valve
Check valves are essential components in piping systems, designed to automatically prevent backflow and drainage. Typically installed on the discharge side of pumps, these valves safeguard systems by ensuring that the medium flows in only one direction, thereby protecting the pump and associated equipment from potential damage caused by reverse flow. The wafer type single disc swing check valves from Dongsheng are specifically engineered for integration within flanged piping systems, offering flexibility for both vertical and horizontal installations. These valves support a working pressure up to 2.5Mpa and are constructed according to various standards such as ANSI 125/150 and EN1092-2. They can handle a range of mediums like fresh water, seawater, various oils, and acidic or alkaline liquids, highlighting their versatility across numerous industrial applications.Most popular related searches
swing check valve
check valve
disc check valve
pipe system
shut-off valve
piping system engineering
flanged pipe
pipe flange
pump system
stainless steel check valve
Check Valves are automatic shut-off valves that are commonly used for preventing back flow or drainage in a piping system. Often applied on the discharge side of pumps, check valves prevent the system from draining if the pump stops and protect against back flow, which could harm the pump or other equipment.
Wafer Type Single Disc Swing Check Valves are designed for installation in flanged piping systems, between two flanges. Valves may be installed in vertical or horizontal piping.
- Available in sizes: 2″ to 12“.
- Temperature range: -20°C to 200°C.
- Pressure rating: 10 Bar/16 Bar/25 Bar.
- Low cracking pressure.
- Space saving design.
