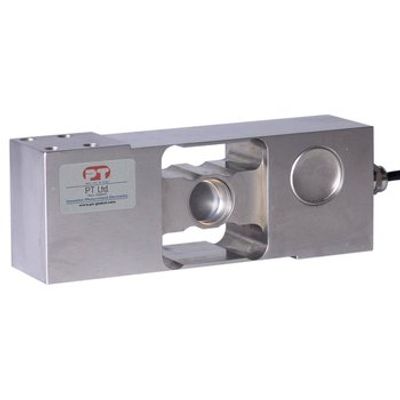

PT Limited - Model PTSSP6-GW -Stainless Steel Single Point Load Cell (200kg - 500kg)
FromPT Limited
(200kg~500kg) Welded Stainless, Affordable, 600x600mm platform. The PTSSP6-GW is a fully welded stainless steel construction single point, sealed to IP68. Rated for capacities from 200kg to 500kg, with C3 accuracy class. Designed and built for minimal sensitivity to off-center loading common with single point use. Directly replaces many similar style 4 x M8 mounting hole stainless steel models. Optimized to offer superb accuracy right through the capacity range and recommended for use on platform scales, check weighing scales, bench scales, hopper scales and net-weighing units plus a variety of convey or style scales.
Most popular related searches
- Fully sealed IP68
- C3 accuracy class
- Stainless steel for protection
- For platform and retail scales
- Suits 600mm x 600mm platform
- Signal Output at Capacity: 2±0.2 mV/V
- Linearity Error: < 0.017% FSO
- Non-Repeatability: < 0.010% FSO
- Combined Error: < 0.020% FSO
- Off Centre Load Error: < 0.020% FSO
- Creep/(30 mins.): < 0.020% FSO
- Zero Balance: < 1% Capacity
- Temperature Effect On Span/10°C : < 0.014% FSO
- Temperature Effect on Zero/10°C: < 0.017% FSO
- Operating Temperature Range: -35 ~ +65 C
- Compensated Temperature Range: -10 ~ +40 C
- Storage Temperature Range: -50 ~ 85 C
- Excitation +ve: RED
- Signal +ve: GREEN
- Service Load: 100% Capacity
- Safe Load: 150% Capacity
- Ultimate Load: 300% Capacity
- Input Resistance: 350O ± 3.5O
- Output Resistance: 350O ± 3.5O
- Insulation Resistance: > 5000 MO (@50 VDC)
- Excitation Voltage (Rec): 5 ~ 12 V AC/DC
- Excitation Voltage (Max): 18 V AC/DC
- Cable: 3m long, Ø5.1
- ...: 4-wire shielded PU cable
- Material: 17-4ph Stainless Steel
- Sealing: IP68 Welded
- Excitation -ve: BLACK
- Signal -ve: WHITE
