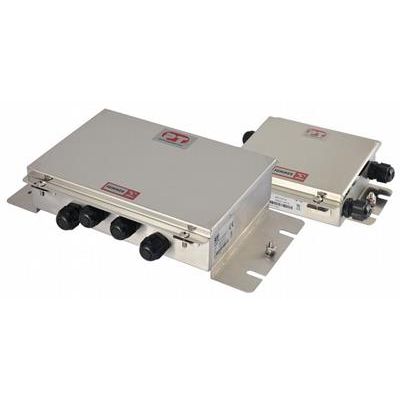

PT Limited - Model PT100SBS -Stainless Steel Summing Boxes
FromPT Limited
The PT100SBS summing boxes are high quality summing boxes with individual load cell adjustment for the weighing industry with a durable stainless steel housing. Fitted with liquid tight strain relief cable fittings. The PT100SBS accepts a wide range of cable diameters. Enclosed in a tough stainless steel housing, easily accessible yet securely closed and positively sealed by way of it`s screw on cover and external fixing holes. Designed and produced for the installer, with jumpers for summing without attenuation and simple to reach and positive control trim pots for load measurement correction. The 8 way also contains surge arrestors appropriate for weighbridge and large tank and silo installations.
Most popular related searches
strain gauge transducer
load cell
strain gauge
load cell weighing
weighbridge
construction site water
security seal
water protection
- Stainless steel construction
- Protected from water ingress with a rubber seal.
- External fixing means no penetrations for mounting
- Solid earthing terminal
- Liquid tight glands for cables 6.5 to 9mm.
- Individual load cell adjustments.
- Built in surge arrestors on the PT100SBS-8
- Cable: Inputs with cable diameter 6.5 to 9mm. Connection to the indicator with 6 wire configuration with cable diameter 6.5 to 9mm.
- Adjustment: Trim potentiometer with 20Ω adjustment in excitation +ve of each load cell and jumper for Ω adjustment in excitation +ve of each load cell and jumper for summing unmodified signals.
PT100SBS-4
- Inputs: Input for 4 load cells or strain gauge transducers using 4 wire connection
- Physical: 140mm x 140mm x 47mm, IP66, stainless steel construction
PT100SBS-8
- Inputs: Input for 8 load cells or strain gauge transducers using 4 wire connection
- Physical: 230mm x 180mm x 70mm, IP66, stainless steel construction
