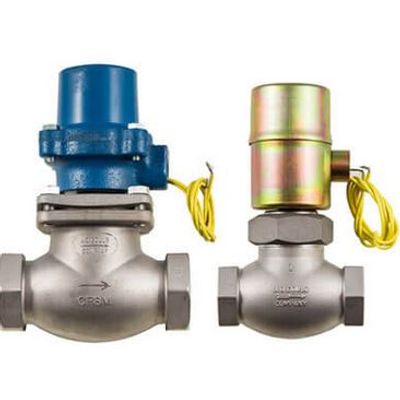

J-D-Gould - Model KX-3T & KX-3T-2 -Stainless Steel Valves

• Complete 316 Stainless Steel
• 1/8″-2″ npt · Normally Closed
• Teflon Leak Proof Seat
• Air/Water · Inert Gas · Oils
• Corrosive Fluids
• 5-60psi OR 5-150psi
• Media temps to 300°
• NEMA 1 Coil Enclosure Standard
• NEMA 4,5,7 Also Available
• All Voltages Available

SERVICE RATINGS

• Pipe Sizes Available:   1/8” , 1/4” , 3/8” , 1/2” , 3/4” , 1” , 1¼” , 1½” , 2” NPT (Specify)
• Media:
  • Corrosive, Non-volatile Liquids
  • Air
  • Water
  • Oils (Max Viscosity: 30W SAE , 400 SSU)
• Pressure Range: 5-60 psi OR 5-150 psi
  • For optimal valve operation, specify your actual pressure range.  A minimum pressure drop of 5 psi (ΔP) is needed for proper operation.

• Voltages Available:
  • 12 , 24 , 120 , 240 , 480 VAC  50-60Hz  26 Watts Max
  • 6 , 12 , 24 , 48 , 115 , 230 VDC 24 Watts Max
• Coil Specifications:
• NEMA Type 1 Standard Coil Enclosure – Continuous Duty Polyester, Thermoset Epoxy Molded with 18″ leads and 1/2″ conduit connector. Insulation: Class F, Rated Fluid Temperature Range: -40° to + 300° F
• NEMA Type 7 Explosionproof Coil Enclosure – Continuous DutyPolyester, Thermoset Epoxy Molded with 18” Leads and ½” Conduit ConnectorInsulation: Class F , Rated Fluid Temperature Range:   -40° F to +300° F
• • Valve Construction
    • GLOBE BODIES are Investment Cast (CF8M).  rated: WSP 200 psi – WOG 1000 psi.  UNION BONNET (1/8”-1” NPT),  BOLT-DOWN BONNET (1¼” – 2” NPT)
    • BONNET ASSEMBLIES are 316 Stainless Steel (SS) Tubes with 316SS Tube Plugs welded to a 316SS (1/8”–1”NPT) or CF8M (1¼”-2”NPT) Bonnet Base.   BONNET ‘O’-Ring SEAL is Teflon® (as required).
    • PISTON ASSEMBLY is 316SS with a 316SS Teflon® Leakproof SEAT SCREW and a 316SS EXPANDER RING behind a Glass & Moly-Filled Teflon® PISTON RING plus a Teflon® SEAT DISC and 316SS (â…›”–¾”NPT) or CF8M (1”-2”NPT) GUIDE NUT.
    • PISTON SPRING is 316SS.
    • PILOT VALVE ASSEMBLY is 316SS JACKET welded over a Carbon Steel CORE.
    MOUNTING & SERVICE
    • Installation: Valves must be mounted in horizontal pipe with coil vertical, upright and on top. A 40–mesh inline strainer is recommended ahead of the valve.
    • Maintenance: As with any piece of equipment, reasonable inspection and maintenance of components should be periodically performed. Frequently check operation, cleanliness and internal wear. Any questions, consult factory.

General Specifications

• 316 Stainless Steel General Purpose Valves
• Normally Closed (Energize to Open)
• NEMA 1 Standard Coil Enclosure
• -2 indicates NEMA 4 Water tight, NEMA 5 Dust tight, & NEMA 7 Explosionproof Coil Enclosure for Hazardous Locations: Class I Group D; Class II Groups E, F & G
• 2-Way
• Investment Cast (CF8M) Body
• Full Ported
• Packless
• Internal Piston-Pilot Operated
  Teflon® Leakproof seat
• All Wetted Parts are either 316 Stainless Steel or Teflon®
