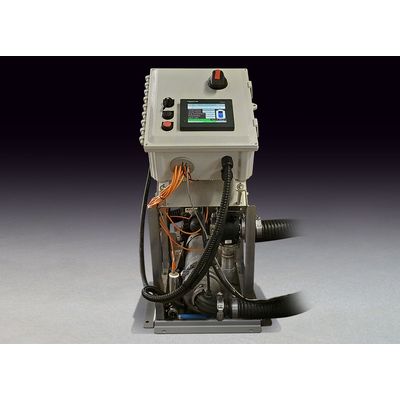

Continuum - Model SC-100 -Stand-Alone Controls
Brine Masters™ Continuum™ SC-100 Stand-Alone Controls with fixed flow rates. Used in our brine maker systems where controls are indoors but the brine maker is outdoor. Simplified user interface, password protection, data logging and built-in diagnostics are all standard. Compatible with any brand of brine system. Compatible with treated or plain salt.
Salinity Control: Fully Automated
Accuracy: +/- 0.10% SG
Brine Measurement: Density
Density Calibration: Fully Automated Self-Calibration
Compatible with Treated or Plain Salt: Yes
User Interface: 5.7″ Color Touch Screen & Push Button
Data Logging: Yes
Built-in Self Diagnostics: Yes
Cellular Remote Access: Yes
Storage Tank Level Monitoring: Optional
Volume Measurement: Open Loop or Optional Tank Level
Controls Cabinet Weather-proofing: NEMA 4X
UL Listed: Yes
Production Capacity: 3,000 or 6,000 GPH
Overall Dimensions:
Frame Construction: 10-gauge 304 Stainless Steel
Water Supply: 2″ or Less
Valve Type: Electric Ball Valve
Salinity Meter: Proprietary Patent Pending Design
Pump Design: Close-Coupled/Centrifugal
Pump Construction: Cast Stainless Steel
Pump Motor Design: Washdown Rated/Inverter Ready
Pump Motor Construction: Stainless Steel
Pump Motor Rating: 2 HP or Optional 3 HP
Pump Motor Drive: Fixed Speed
Pump Motor Voltage/Phase: 110 or 220/1
3 HP Motor for 6,000 GPH Performance
Storage Tank Level Monitoring
