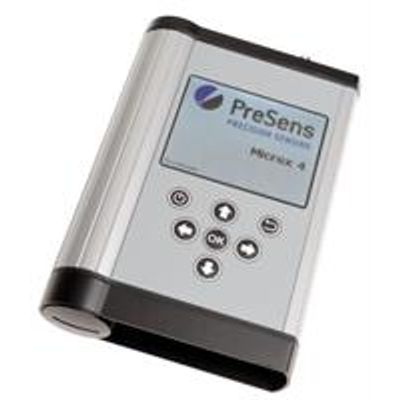

PreSensModel Microx 4 -Stand-Alone Fiber Optic Oxygen Transmitter

SHARE

The Microx 4 is a completely stand-alone, portable fiber optic oxygen meter. It can be used with non-invasive sensors & probes (1 mm fiber), and oxygen microsensors (200 µm fiber) in different designs. This oxygen meter is compatible with the wide range of sensors type PSt7 (detection limit 15 ppb, 0 – 100 % oxygen). With its integrated barcode reader the Microx 4 can easily recognize and assign calibration data to sensors in just one scan. The implemented sensor management system allows storing data of up to 100 sensors. Microx 4 has 16 GB internal memory which allows prolonged computer-independent operation. It is delivered with the PreSens Datamanager software: sensor, user and measurement data is easily transferred between the PC and the oxygen meter. The data management and easy data export will facilitate and speed up your analysis.

Most popular related searches
  • For use with non-invasive sensors, probes & microsensors
  • Straightforward measurement due to unique sensor ID
  • Simple calibration via barcode scan
  • 16 GB internal memory
  • Compensation of temperature, pressure and salinity
  • Energy management for long term measurements
  • Optional database supported software offers simultaneous control of multiple devices
  • Oxygen sensor: PSt7 (optical ST connector)
  • Temperature sensor: Pt100 temperature connector (sensor not included)
  • Temperature performance: from 0 °C to + 50 °C, Resolution ± 0.1 °C
  • Power supply:
    • 4 AA nickel-etal bybrid cells (min. 2,200 mAh)
    • Use only AC Adapter (5 VDC / min. 1 A) supplied for recharging
  • Max. battery operating time: 16 hrs. (3 sec. interval measurement, Default LED intensity, Display backlight OFF, at room temperature)
  • Temperature: operating / storage: from 0 °C to + 50 °C / from - 20 °C to + 70 °C
  • Relative humidity: up to 80 % (non condensing)
  • Dimensions: 37 mm x 180 mm x 119 mm
  • Weight:
    • 0.65 kg (w/o batteries & protection kit)
    • 0.78 kg (with batteries & protection kit)
  • Digital interface: USB Interface (cable included)
  • Display: 3,5 `` color TFT, 320 x 240 pixel
  • Internal memory: 16 GB Memory (~ 40,000,000 data sets)
  • Export via included software
