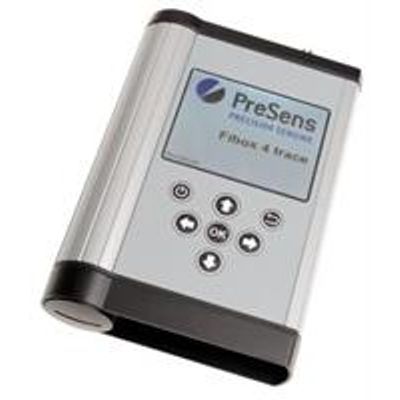

PreSens - Model Fibox 4 -Stand-Alone Fiber Optic Trace Oxygen Meter
The Fibox 4 trace is a stand-alone oxygen meter designed for easy handheld use. Its robust housing is splash-proof, and the controls were developed to be operated even while working under harsh conditions with heavy gloves on. The oxygen meter can adapt to dry or humid environmental conditions, and is temperature compensated. Additionally, it has automatic compensation for pressure and salinity. Fibox 4 trace can be operated with sensors type PSt3 (detection limit 15 ppb dissolved oxygen, 0 – 100 % oxygen), type PSt6 for the trace oxygen range (detection limit 1 ppb dissolved oxygen, 0 – 5 % oxygen), and also with type PSt9 for ultra-low oxygen measurements (detection limit 0.5 ppmv, 0 - 200 ppmv gaseous oxygen).
With its integrated barcode reader the oxygen meter can identify and calibrate a sensor just in one scan. Its sensor management system allows to store data of up to 100 sensors. Fibox 4 trace has 16 GB internal memory which allows prolonged computer-independent operation. It is delivered with the PreSens Datamanagement software allowing data transfer to a PC for further analysis.
- Worry-free measurement due to unique sensor ID
- Measure from 1 ppb to 100 % oxygen with one device
- Easy calibration via barcode scan
- Compensation of temperature, pressure and salinity
- 16 GB internal memory
- Energy management for long term measurements
- Optional database supported software offers simultaneous control of multiple devices
- Oxygen sensors: PSt3, PSt6, and PSt9 (optical SMA connector)
- Temperature sensor: Pt100 temperature connector (sensor not included)
- Temperature performance: from 0 °C to + 50 °C, resolution ± 0.1 °C
- Power supply: 4 AA nickel-metal hybrid cells (min. 2200 mAh) use only AC adapter (5 VDC / min. 1 A) supplied for recharging
- Max. battery operating time: 16 hrs. (3 sec. interval measurement, default LED intensity, display backlight OFF, at room temperature)
- Temperature: operating / storage: from 0 °C to + 50 °C / from - 20 °C to + 70 °C
- Relative humidity: up to 80 % (non condensing)
- Dimensions: 37 mm x 180 mm x 119 mm
- Weight:
- 0.65 kg (w/o batteries & protection kit)
- 0.78 kg (with batteries & protection kit)
- Digital interface: USB interface (cable included)
- Display: 3.5 `` color TFT, 320 x 240 pixel
- Internal memory: 16 GB memory (~ 40,000,000 data sets)
- export via included software
