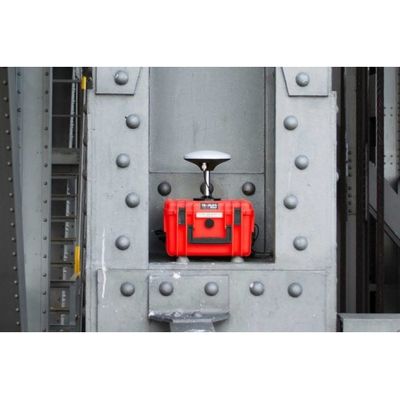

TEXtant - Stand Alone Multi-Frequency Surface Monitoring System
The TEXtant® system allows millimeter-precise measurement of displacement, direction and velocity. Works as accurately as an IGS station but is much more cost-effective, and labor-efficient. Surveying data gets transferred directly to your client device.
MULTI-FREQUENCY MILLIMETER-PRECISION
Different satellite constellations provide mm accuracy, even under the most difficult conditions.
AUTOMATIC DATA PROCESSING
Movement data and results are transferred directly to the cloud.
STAND ALONE AUTONOMOUS SYSTEM
No base station required. Full network capability, 24/7 measurement, solar powered.
COST EFFECTIVE AND EASY TO RENT
Organize your unmanned, precise surveying yourself. Easy to use.
MOVEMENT ALARM
Alerts in case of displacement, including direction and velocity information.
SETTING NEW LANDMARKS
Expansion of existing geodetic networks and building reference stations with IGS accuracy.
GNSS RECEIVER SPECIFICATIONS
- Concurrent reception of GPS, GLONASS, Galileo and BeiDou
- Stand-alone system based on PPP with millimetre accuracy for dynamic monitoring
- Multi-band RTK with fast convergence times and reliable performance
- Fast update rate for highly dynamic applications
HARDWARE SPECIFICATIONS
- Multifrequency GNSS with multi-GNSS survey antenna
- Industry standard PC with integrated touch panel monitor
- Microsoft Windows© 10 operating system, compatible with current PC software
- 8 GB RAM
- 128 GB SSD Hard drive
- Ethernet port
- WiFi and Bluetooth© antenna
- HDMI Monitor connector
- USB port for connecting external devices, e.g. Internet routers or cell phones
- Power connections: Internal battery, solar panel or 240V AC
- Rugged case with GNSS antenna rated for IP66
