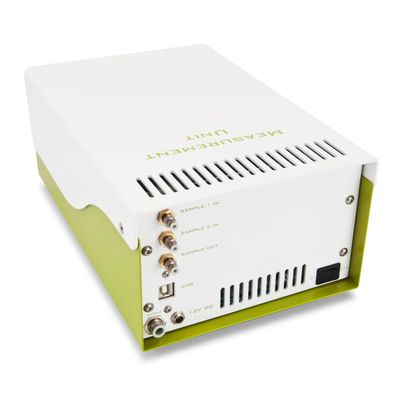

Gasera - Model OEM Module -Stand-Alone Photoacoustic Multi-Gas Measurement Unit
GASERA OEM MODULE is a stand-alone photoacoustic multi-gas measurement unit that can be easily integrated as part of a monitoring system. The module utilizes the same photoacoustic engine as the GASERA ONE family analyzers.
- Advantages of photoacoustic spectroscopy in your own product
- Can be tailored for different gases and applications
- Standard gas inlets for sample gas, USB connection for host device
- Customized versions on request
GASERA OEM MODULE provides an easy access to photoacoustic technology for the instrument manufacturers and system integrators. GASERA OEM MODULE is configured based on the specific needs and requirements by the customer’s application and it will be integrated in to the customer’s measurement system.
Typical applications for the GASERA OEM MODULE include Dissolved Gas Analysis (DGA) for transformer condition monitoring, Waste Anesthetic Gases (WAG) monitoring in hospitals and clinics, photocatalysis research and Greenhouse gas (GHG) emissions monitoring from soil and livestock.
- Anesthetics: desflurane, enflurane, isoflurane, sevoflurane etc.
- CFCs and PFCs: CF4, C2F6, R13 , R-134a etc.
- Corrosives (at low levels): HCl, HCN, HF
- Hydrocarbons: CH4, C2H2, C2H4, C2H6 etc.
- Inorganics: CO, CO2, H2O, H2S, NO, NO2, N2O, NF3, NH3, SF6, SO2
- VOCs: acetone, benzene, ethanol, formaldehyde, methanol, toluene, xylenes etc.
- Based on patented photoacoustic spectroscopy with cantilever enhanced optical microphone
- Configurable to several applications
- Simultaneous analysis of up to 50 gases depending on configuration
- Typically Low or sub-ppb detection limits
- High selectivity
- Low sample volume and wide dynamic range
- Long re-calibration period
- Automatic compensation for temperature and pressure fluctuations
- Dissolved Gas Analysis (DGA)
- Animal husbandry
- Border security
- Fenceline monitoring
- Indoor air quality and occupational safety
- Ship emissions monitoring
- Soil analysis
- Waste anesthetic gases
- Photocatalysis research
- Clean room monitoring
