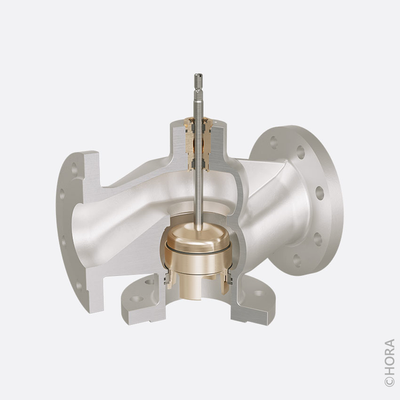

Hora HolterStandard Duty Mixing and Diverting Valves

SHARE

Our Standard Duty series mixing and diverting valves stand out for their exceptional precision in media mixing and diverting, all while optimising costs. With an intelligent design that meets stringent accuracy standards, these valves are ideal for a wide range of applications. Thanks to their modular design and a variety of housing materials and trim designs, they can be tailored to your specific needs – from precise mixing and diverting of hot and cold water in building services to the reliable control of process media in industrial environments.

Most popular related searches
  • Medium: Water, Water/Glycol
  • Nominal size: DN 15 - DN 300
  • Pressure Rating: PN 6 - PN 25
  • Temperature Range: -15 °C to 350 °C
  • Body Material: CC499K, EN-JL1040, EN-JS1024
  • Kvs: 0.63 m³/h - 1600 m³/h
  • Leakage Class: EN 1349 – Seat Leakage VI G 1 (bubble-tight)
  • Connection: Flange, Thread (EN)
  • Actuators: Electric, Pneumatic, Manual
  • Certification: CE, UKCA
