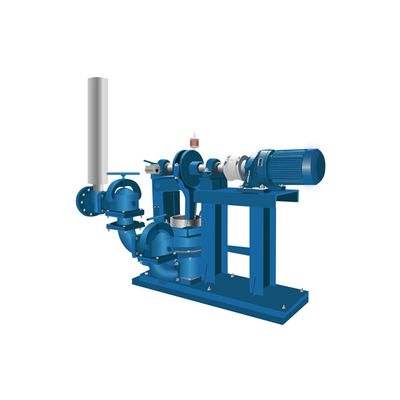

Carter - Model 795-S -Standard Duty Plunger Pumps
Pump up to 65 GPM with up to 80 feet of total dynamic head with the Standard Duty 795-S.
Most popular related searches
- Standard Duty 795-S
- 8.5” Simplex Plunger Pump
- 8.5” Plunger Diameter
- 65 GPM
- 80 Feet Head
- NUMBER OF PLUNGERS: 1
- MAXIMUM CAPACITY: 65 GPM
- MAXIMUM TOTAL DYNAMIC HEAD: 80’
- CONNECTION: ANSI B16.1 CLASS 125 – 4”
- PLUNGER DIAMETER: 8.5”
- ECCENTRIC DIAMETER & CROSS-SECTIONAL WIDTH: 10” X 2”
- SHAFT DIAMETER: 2.187”
- PIN POSITIONS: 14
- STROKE LENGTH: 5.125”
- MAXIMUM STROKES PER MINUTE: 50
- BALL CHECK VALVES: 5.125” URETHANE WITH STEEL CORE (7.5 LBS)
- AIR CHAMBERS: 8” X 36” (1,800 CUBIC INCH)
- APPROXIMATE WEIGHT: 1,100 LBS
