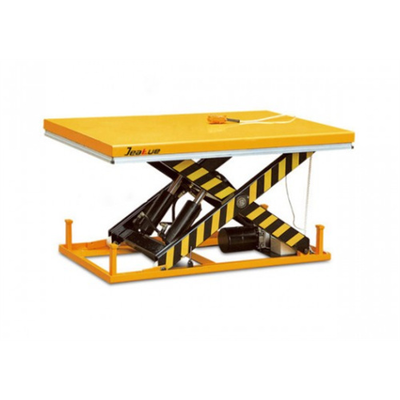

Jeakue - Standard Electric Lift Table

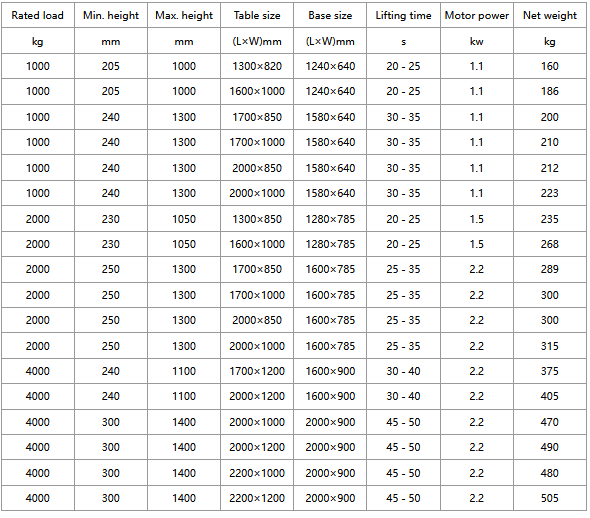

Rated load : 1000-4000kg. Min. height : 205-300mm. Max height : 1000-1400mm. Net weight : 160-505kg.
Most popular related searches
safety system
EN standard
drainage system
check valve
stop valve
flow control valve
drainage valve
safety can
flow control
control valve
- Heavy-duty design;
- This series of table truck can be used in above-floor or in-floor pit applications
- Complying with EN standard and ANSI / ASME safety standard;
- European original high-quality AC power supply components;
- Low-voltage (24V) control box with up-down and stop buttons;
- Anti-overload valve and flow compensated valve, precisely control of lowering speed;
- Safety device beneath the table ensures the table stopped lowering when there is obstacle;
- Heavy duty cylinders with drainage system and check valve to stop the table lowering in case of hose burst;
- Safety clearance between scissors can prevent jamming.
- Auto lubrication guide rings on pivot points;
- Removable hoisting ring provides convenience to table installation and maintenance.
