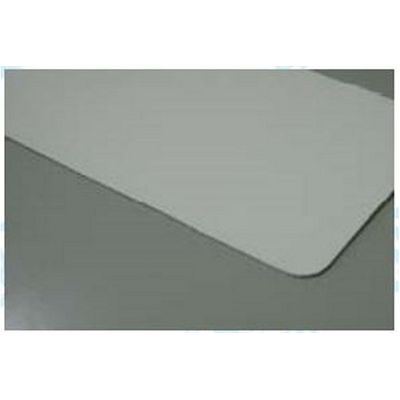

Belting Edge - Model 1ply PU FDA White -Standard Food Grade Fabric Reinforced Belting
Single ply polyester white 88 shore A Urethane top cover low friction urethane impregnated underside.
Most popular related searches
- Colour : White
- Belt Thickness : 0.9mm
- Top Cover Thickness : 0.2mm-88 Shore A
- Belt Weight : 0.75kg/m2
- Coefficient of friction (On steel) : 0.15
- Minimum pulley Diameter : 5mm (at ambient temperature)
- Minimum backflex Diameter : 15mm (at ambient temperature)
- Belt Factor : 5 N/mm at 1% stretch
- Temperature Range : -30 to + 90 Deg C
- Food Rating : FDA, USDA
- Carcass construction : Rigid
- Stock width : 2000mm
- Manufactured width : 2000mm
- Dimensionally stable and laterally rigid
- Suitable for small pulley diameters / knife edges
- High wear hard PU cover and cut resistant
- Matt finish top cover for product release
- Unaffected by moisture and humidity
- Anti-static properties
- Conveying of foodstuff, confectionary and bakery
- Cooling tunnels, biscuit moulding machines,
- connecting belt, Chocolate glazing machines
- Particle board spreader/accelerator belts
- Knife edge conveyors
- High speed wrapping and packaging machines
