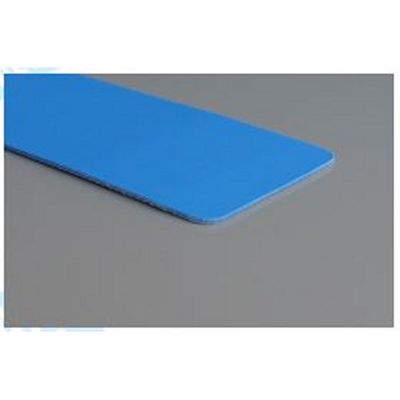

Belting Edge - Model 2ply PU Blue FDA -Standard Food Grade Fabric Reinforced Belting
Two ply polyester, Blue 92 shore A urethane top cover matt finish, low friction urethane impregnated underside.
Most popular related searches
- Colour : Blue - Matt finish
- Belt Thickness : 1.6mm
- Top Cover Thickness : 0.3mm
- Belt Weight: 1.65kg/m2
- Coefficient of friction (On steel): 0.20
- Minimum pulley Diameter: 25mm (at ambient temperature)
- Minimum backflex Diameter: 50mm (at ambient temperature)
- Belt Factor: 10 N/mm at 1% stretch
- Temperature Range : -40 to + 90 Deg C Product (-25 to + 60 Deg C Ambient)
- Food Rating : FDA
- Carcass construction : Rigid
- Stock width : 2000mm
- Manufactured width : 2000mm
- 90 Deg C Product (-25 to + 60 Deg C Ambient)
- Dimensionally stable and laterally rigid
- Suitable for small pulley diameters
- High wear hard PU cover
- Matt finish top cover for product release
- High resistance to fats, oil and to abrasion
- Unaffected by moisture and humidity
- Low temperature resistance
- Pastry, bread and chocolate factories
- Frozen foods—Ice Cream, meat, poultry and fish
- Conveying foodstuffs-Cheese, candy and prepared foods.
- Cooling tunnels, Pharmaceuticals
- Applications requiring high vegetable oil and fat resistance.
- Metal detectors
