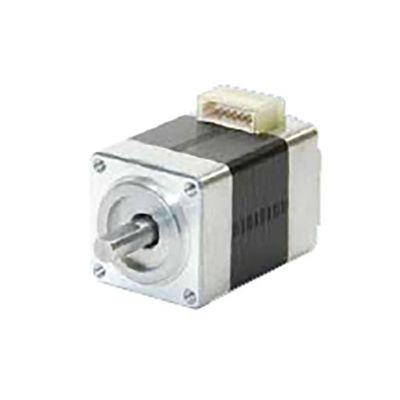

NMBTC - Model 08PM-K049BSTDCN -Standard Hybrid Stepping Motor

Category : Standard Hybrid. Part Number : 08PM-K049BSTDCN. Frame Width [mm] : 20. Frame Height [mm] : 20. Frame Length [mm] : 30. Steps per Rev. : 200. Step Angle [degrees] : 1.80. Drive Sequence : bipolar. Drive Voltage [V] : 24. Rated Current per Phase [A] : 0.50. Resistance [Ohms] : 8.50. Inductance [mH] : 3.80. Holding Torque [mN-m] : 20. Detent Torque [mN-m] : 2.00. Mass [g] : 50. Rotor Inertia [g-cm2] : 2.
