SFS - Standard Lagoon Mixer System
FromSteFoS bv
The standard system for mixing manure storage, circulate with a lobe pump, has insufficient capacity for the larger foil lagoons. The SFS-Lagoon mixer is especially developed for foil lagoons. The mixer blades are placed into a frame to protect the floating cover. The frame is equipped with an adjustable nozzle, which can be operated from the top of the dyke.Most popular related searches
- Type 6: framelength 6 m. for shallow lagoons
- Type 9: framelength 9 m. for deep bassins
- type 11: framelengtth 11 m. for extra deep lagoons
-
Capacity: 3350 m³/hour at 540 rpm.
-
Power needed:
51 kW normal conditions,
58 kW extreme conditions. -
Seals: LIPP-Seal with stainless steel spring and stainless steel bush.
-
Bearings: maintenance free ball bearings.
-
Pipe: 102mm
-
Fan: Three blade, 560 mm
-
RPM: max. 540Finish: Pipe galvanized, fan blades varnish, frame stainless steel.

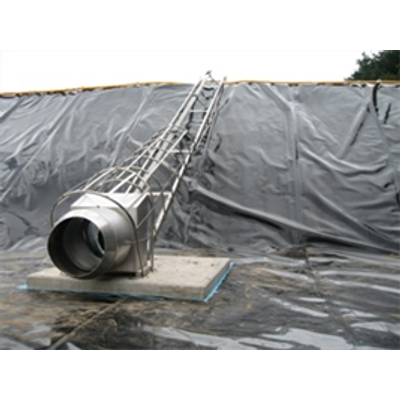

The mixer can be placed in every type of lagoon. On the bottom and on the top of the dyke a concrete slab is placed to fix the mixer. To protect the foil, a layer of felt will be placed under the concrete slab.
