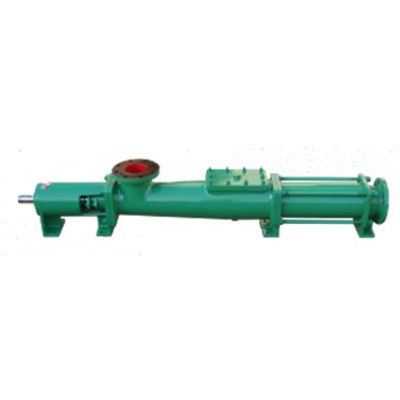

RotomacModel SAC -Standard Screw Pump

SHARE

Range SAC-Bareshaft design with a Cardon Type Universal Joint. SAC Range uses a Heavy Duty, Robust , Long Lasting Cardan Type Universal Joint. Frequency of parts replacement is reduced due to robust Joint Design , they function seamlessly even in the most ardous & demanding Industrial applications . This range with its Bareshaft design facilitates universal configuration of drives through flexible couplings or V-belts. Convenient to service through plug-connection between rotating unit and drive shaft of the pump. Low Life Cyle Costs. 12 Month Cardon Joint Warranty *.

Most popular related searches
  • Flow rate: 0-420 Cu. M/hr (0-1320 USGPM)
  • Pressure- up to 36 Kg/cm2
  • Temperature- Up to 200 Degree C
  • Viscocity – 1,50,000 CST
  • Steady, low-pulsation pumping
  • High self-priming rate,
  • Installation possibilities in all positions
  • Direction of rotation and thus delivery flow reversible
  • Non-clogging: handles solids in suspension or mixture containing high percentage of solids.
  • Can work on Snore: inherently self-priming.
  • High Suction Lift: low NPSH(R), effective in high vacuum conditions.
  • Minimal Internal Wear: Gentle handling of shear sensitive and abrasive products because of low internal velocity.
  • Reversible: suction and delivery ends can be interchanged by merely changing direction of rotation of the prime mover.
  • Versatility: handles abrasive, shear sensitive and viscous materials, solids in suspension and air-solid-liquid mixture.
