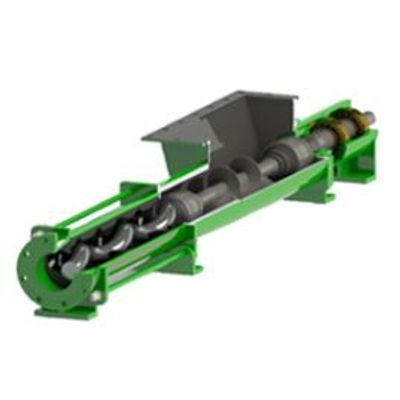

Rotomac - Model WAP -Standard Screw Pump
Range WAP- Bareshaft design with a Pin Bush Type Universal Joint. This range with its Bareshaft design facilitates universal configuration of drives through flexible couplings or V-belts. WAP range uses the totally encapsulated Pin-Bush Type Universal joints , these are long lasting and ensure a low maintenance and replacement cost. Convenient to service through plug-connection between rotating unit and drive shaft of the pump.
Most popular related searches
- Flow rate: 0-420 Cu. M/hr (0-1320 USGPM)
- Pressure- up to 36 Kg/cm2
- Temperature- Up to 200 Degree C
- Viscocity – 1,50,000 CST
ADD-INS
- Bridge Breaker Paddle Assembly
- Used for highly viscous and crumbly media which tend to form bridge
- Counter Hopper
- Is used on top of the existing hopper to increase the holding capacity of the hopper.
- Steady, low-pulsation pumping
- High self-priming rate
- Installation possibilities in all positions
- Direction of rotation and thus delivery flow reversible
- Non-clogging: handles solids in suspension or mixture containing high percentage of solids.
- Can work on Snore: inherently self-priming.
- High Suction Lift: low NPSH(R), effective in high vacuum conditions.
- Minimal Internal Wear: Gentle handling of shear sensitive and abrasive products because of low internal velocity.
- Reversible: suction and delivery ends can be interchanged by merely changing direction of rotation of the prime mover.
- Versatility: handles abrasive, shear sensitive and viscous materials, solids in suspension and air-solid-liquid mixture.
