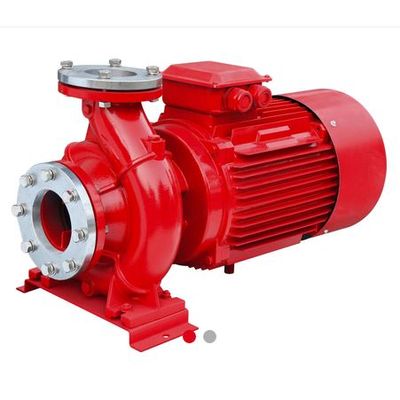

Milestone - Model NA，NSA -Standardized Centrifuge Pumps
NA series close coupled centrifugal pumps are with single impeller, which manufactured according to European standards EN733; NA series are widely used in water supply for living uses; industrial uses and general water plants projects; water supply; spray irrigation and pressure sets; heating and air-conditioning plants etc.
Most popular related searches
centrifugal pumping
centrifugal pump
close coupled centrifugal pump
silicon carbide ceramic
water supply
centrifuge
dissipative silencer
air conditioning
close coupled pump
coupled pump
Pump Specifications
- Discharge flange diameter: DN32 – DN80 mm
- Capacity Q range: 4.5m³/h - 240m³/h (50HZ)
- Head H range: 10m – 92.5m
- Operating speed: 2900RPM (50Hz)
Operation Conditions
- Working Temperature Range: -10°C ~ +90°C
- Max. Allowable Working Pressure(MAWP): 10bar
- Hydro-static Test Pressure = 1.3 times the maximum discharge pressure, but not exceed 13 bar
Construction Features
- Main dimensions: Apply to EN733 (DIN24255) standard and backpull out type
- Casing structure: End suction, center radial discharge
- Flange pressure rate: ISO7005.2 PN1.6MPa
- Shaft seal: Single mechanical seal (Graphite / Silicon carbide / Ceramic / NBR / FPM / SS304 / SS316) According to Standard EN 12756
- Driven shaft: Pump and motor flanged together to form a close-coupled unit, with common shaft
Benefits
- Advanced high efficiency design
- Reliability
- Distinguished heat dissipation
- Silence running
- Compact structure
