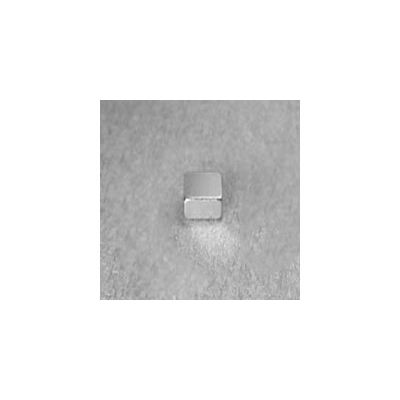

Stanford - Model SMBN0394 -Neodymium Block Magnet
FromStanford Magnets
The SMBN0394 BLOCK neodymium magnet is made from high perfermance N50 NdFeB, with Nickel coating. The dimension of this item is 1/4` x 1/4` x 1/8` thick, magnetized Through Thickness, with tolerance of ±0.004` x ±0.004` x ±0.004`. The weight of this super strong neodymium magnet is 0.00211875 lbs. It can pull up to 3.38 lbs steel. And the surface field is up to 4833 gauss.
Most popular related searches
- Product ID: SMBN0394
- Material: NdFeB
- Shape: Block
- Dimension: 1/4`` x 1/4`` x 1/8`` thick
- Tolerances: ±0.004" x ±0.004" x ±0.004"
- Weight(Oz.): 0.034
- Grade: N50
- Coating: Nickel
- Magnetization direction: Through Thickness
- Magnetic Face: 1/4" x 1/4"
- Pull Force(Lbs): 3.38
- Surface Field(Gauss): 4833
- Max Operating Temp(°C/°F): 80/176
