Stanford - Model SMBN0395 -Neodymium Block Magnet
FromStanford Magnets

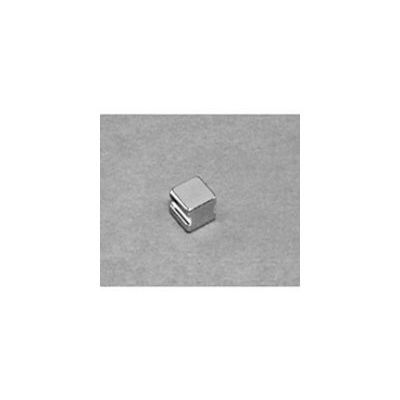

The SMBN0395 BLOCK neodymium magnet is made from high perfermance N42 NdFeB, with Nickel coating. The dimension of this item is 1/4` length x 1/4` width x 3/16` thick , with step IN, magnetized Through Thickness, with tolerance of ±0.004` x ±0.004`. The weight of this super strong neodymium magnet is 0.0029375 lbs. It can pull up to 3.42 lbs steel. And the surface field is up to 5409 gauss.
Most popular related searches
- Product ID: SMBN0395
- Material: NdFeB
- Shape: Block
- Dimension: 1/4`` length x 1/4`` width x 3/16`` thick , with step IN
- Tolerances: ±0.004" x ±0.004"
- Weight(Oz.): 0.047
- Grade: N42
- Coating: Nickel
- Magnetization direction: Through Thickness
- Magnetic Face: 1/4" length x 1/4" width
- Pull Force(Lbs): 3.42
- Surface Field(Gauss): 5409
- Max Operating Temp(°C/°F): 80/176
