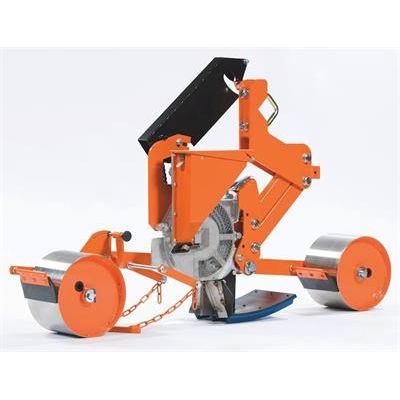

Stanhay - Model 780 -Entry Level Air Drill
FromStanhay Webb Ltd
The 780 is the entry level air drill for 2 to 6 rows with a simple single sided chassis design and smaller fan. It is also available in a high density version capable of spacing row units 150mm apart meaning lines can be spaced at just 50mm across the entire planting width. Both units use a 12 speed chain and sprocket landwheel drive system.
Most popular related searches
- Seed type: NATURAL + PELLETED
- Multiline Capability: 1-4 LINE
- Min/Max Seed Size: 1MM/10MM
- Minimum Row Spacing: 200MM
- Weight: 48kg
- Simple but tough single-sided chassis design
- Fingertip depth adjustment
- Unobstructed access to the metering unit
- Floating parallel linkage for consistent
depth control
- PLANTER TYPE: AIR
- SEED TYPE: NATURAL + PELLETED
- MULTILINE CAPABILITY: 1-4 LINE
- HOPPER CAPACITY (LITRES): 1 / 2
- TOOLBAR: 60MM DIAMOND
- MINIMUM SEED SPACING: 7MM
- MIN/MAX SEED SIZE: 1MM/10MM
- MIN/MAX NUMBER OF ROWS PER MACHINE: 2-18+
- MINIMUM ROW SPACING: 200MM
- MINIMUM LINE SPACING: 21.6MM
- APPROX ROW UNIT WEIGHT (KG): 48
- ROW UNIT LENGTH (MM): 1340
- DEPTH CONTROL: INCREMENTAL 2.5MM STEPS
- COVERER OPTIONS: DRAG OR ARM
- WHEEL OPTIONS: STAINLESS / CAGE / RUBBER
- SEED PRESS WHEELS AVAILABLE: YES
- ROW UNIT DOWN FORCE ADJUSTMENT: NO
- REAR WHEEL DOWN FORCE ADJUSTMENT: NO
- DRIVE SYSTEM: 28 SPEED CHAIN DRIVE
- TRACTOR REQUIREMENT: SMALL OR LARGE TRACTOR WITH PTO/HYDRAULICS
- LINKAGE CATERGORY: CAT 1/2
