Backers Maschinenbau GmbH

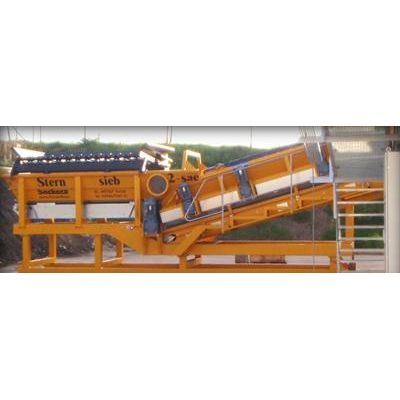

Star - Model 2 - SA -Semi Mobile Screen Machines
Built as semi-mobile variant on skid frame.. Ashes, Bark, Biomass, Building rubble, Cleaning sugar beets, Coal, Commercial waste, Compost, Fluff, Furnace waste material, Garbage, Gravel / ballast, Green wood, Ground, Line construction, Loamy soil, Mixed construction rubbish, Old wood (pre-shredded), Peat, Railroad ballast, Recycling material, Renewable primary products, River gravel, Rocks, Rootstocks / root wood, Shredded tires, Slag, Soil, Soil mixes with stones, Substitute fuels, Top soil, Waste, Wood chips
Most popular related searches
waste wood chip
mobile screening system
soil mixing
wood shredding
wood chip
pre-shredding
tire shredding
materials recycling
mobile screen
screening system
information
- Screenfractions: 2
- Throughput: Max. 200 cbm/ h (at 28 mm screening)
- Weight: 15.000 kg (depends on equipment)
- Version: skidmobil
- Engine: VOLVO TAD 572 VE*
- Output: 160 kW
screening decks
- over 8 sqm on screening deck allows a cut from 6/8 mm to 80 mm
- Screening size ±20% adjustable through speed settings
- Quick-change system
dimensions
- Transport dimensions: 12.090 * 2.550 * 3.000 (Length*Width*Height in mm)
- Working dimensions: 14.160 * 4.650 * 3.800 (Length*Width*Height in mm)
- Hopper dimensions: 3.900 * 1.200 (Length*Width in mm), bottom 4.200 * 1.800 (Length*Width in mm), top
- Hopper volume: 5 cbm
