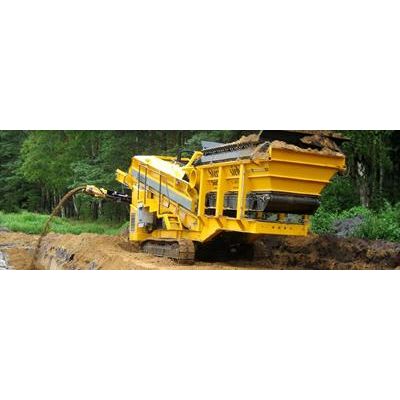

Star - Model 2-Ta -Wireless Controlled Screening Machine
Can be deployed on construction sites and on difficult terrain. Wireless controlled screening machine turnable on site.
Most popular related searches
control screening machine
screening system
waste wood chip
soil mixing
wood shredding
fire extinguishing
fire extinguisher
dosing screw
wood chip
pre-shredding
information
- Screenfractions: 2
- Throughput: Max. 200 cbm/ h (at 28 mm screening)
- Weight: 18.000
- Version: trackmobil
- Engine: VOLVO TAD 572 VE*
- Output: 160 kW
operating conditions
Ashes, Bark, Biomass, Building rubble, Commercial waste, Compost, Fluff, Furnace waste material, Garbage, Gravel / ballast, Green wood, Ground, Line construction, Loamy soil, Mixed construction rubbish, Old wood (pre-shredded), Peat, Railroad ballast, Recycling material, Renewable primary products, River gravel, Rocks, Rootstocks / root wood, Shredded tires, Slag, Soil, Soil mixes with stones, Substitute fuels, Top soil, Waste, Wood chips
screening decks
- over 8 sqm on screening deck allows a cut from 6/8 mm to 80 mm
- Screening size ±20% adjustable through speed settings
- Quick-change system
dimensions
- Transport dimensions: 12.000 * 2.550 * 3.300 (Length*Width*Height in mm)
- Working dimensions: 13.417 * 4.580 * 3.950 (Length*Width*Height in mm)
- Hopper dimensions: 3.900 * 1.200 (Length*Width in mm), bottom 4.200 * 1.800 (Length*Width in mm), top
- Hopper volume: 5 cbm
- Hopper enhancement
- Bar grate
- Hydraulic housing
- Compressor
- Special color
- Auxiliary sieve screen
- Fine deck shifting
- Dosing screw
- Fire extinguisher
- Central lubrication
- Vertical adjustment
- Magnetic separation
- Cleaning system
- Reversible fan
- Wind siftin
