Backers Maschinenbau GmbH

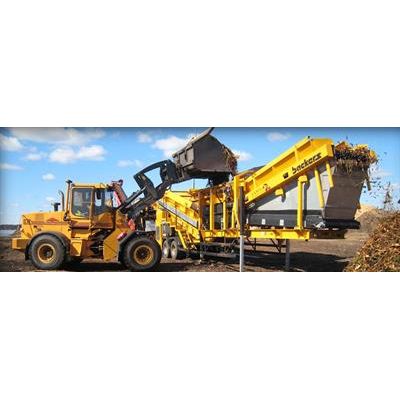

Star - Model 3-MAL -Extended Coarse Screen Machine
A screen length of 12 m is reached by the extended coarse screen thus making a very exact grain size possible.
Most popular related searches
coarse screen
coarse screening
waste wood chip
soil mixing
wood shredding
screening system
fine screen
wood chip
pre-shredding
tire shredding
information
- Screenfractions: 3
- Throughput: Max. 250 cbm/ h (at 28 mm screening)
- Weight: 25.000 kg (depends ond equipment)
- Version: semi-trailer or king pin (overlength)
- Engine: VOLVO TAD 572 VE*
- Output: 160 kW
operating conditions
Ashes, Bark, Biomass, Building rubble, Commercial waste, Compost, Fluff, Furnace waste material, Garbage, Gravel / ballast, Green wood, Ground, Line construction, Loamy soil, Mixed construction rubbish, Old wood (pre-shredded), Peat, Railroad ballast, Recycling material, Renewable primary products, River gravel, Rocks, Rootstocks / root wood, Shredded tires, Slag, Soil, Soil mixes with stones, Substitute fuels, Top soil, Waste, Wood chips
screening decks
- Almost 4 sqm in screen deck I (coarse screen) and over 8 sqm in screen deck II (fine screen) allow a cut from 5 mm to 80 mm.
- Screening size ±20% adjustable through speed settings
- Quick-change system
dimensions
- Transport dimensions: 16.620 * 2.550 * 4.000 (Length*Width*Height in mm)
- Working dimensions: 18.120 * 4.650 * 4.000 (Length*Width*Height in mm)
- Hopper dimensions: 3.900 * 1.200 (Length*Width in mm), bottom 4.200 * 1.800 (Length*Width in mm), top
- Hopper volume: 5 cbm
