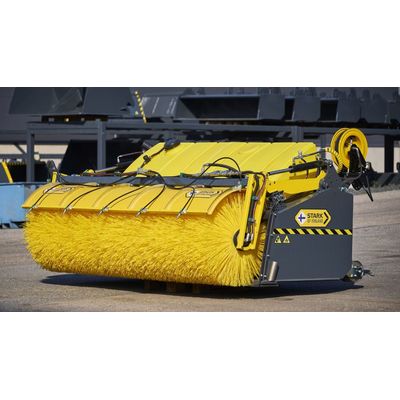

STARK - Model BSW -Bucket Sweepers
STARK Bucket Sweepers BSW-Models are built for demanding cleaning tasks in various environments such as industrial areas, ports, and urban streets. These sweepers are optimized for use with wheel loaders and feature a large waste bin and 900 mm lamellas that contribute to exceptional cleaning efficiency and quality. They are designed with a 500 HB wear steel cutting edge, along with boltable wear blades and edge wear pieces that enhance durability. The hydraulic motor is shielded from impacts by being integrated within the brush roller, providing protection during operation. An innovative PIN FLOAT floating frame option enhances operating comfort by allowing free movement of the sweeper. The system provides efficient dust control with a DBS Dust binding system, incorporating a large water tank with high-pressure nozzles that dissipate dust effectively. Ideal for areas with high dust requirements, these sweepers support a range of hydraulic connections and are compatible with over 50 different adapters for increased versatility.
STARK bucket sweepers are designed for areas where high cleaning power and durability are required of the sweeper unit, such as streets, yards, industrial areas, ports, and sorting centers.
The bucket sweeper can be used on tractors, tool carriers and wheel loaders.
The STARK Bucket sweeper BSW-Model is specially designed for use with a wheel loader. It boasts a large waste bin and 900 mm lamellas, which makes it high-performing and adds to the sweeping quality.
The robust STARK Bucket sweepers, BSW-Models withstand wear and shocks.
Bucket cutting edge is made of 500 HB wear steel, boltable wear blades and edge wear pieces protect the bucket from wear.
SUNLINE 900 mm lamellas improve the work surface on uneven brushing areas.The large hopper volume reduces emptying intervals. The optional PIN FLOAT floating frame improves efficiency and increases operating comfort.
The hydraulic motor is integrated inside the brush roller for protection against impacts. The coupling with a buffer protects the hydraulic motor of the brush roller in starting and collision situations.
The large opening angle of the brush roller allows a full unloading angle directly on the platform. When the brush roller rises, the bucket can also be turned straight down when tipping onto the platform.
Infinitely adjustable brush height and support rollers improve efficiency and increase operating comfort.
Cleaning performance and dust binding properties can be further enhanced by equipping the watering system (available as an accessory) with tanks.
Operating principle of the Bucket sweeper:
- When driving forward, the bucket sweeper easily collects even larger pieces, such as pieces of board, boulders or pieces of plastic.
- When driving backwards with the bucket sweeper, you can finish the brushing result by collecting even finer material.
