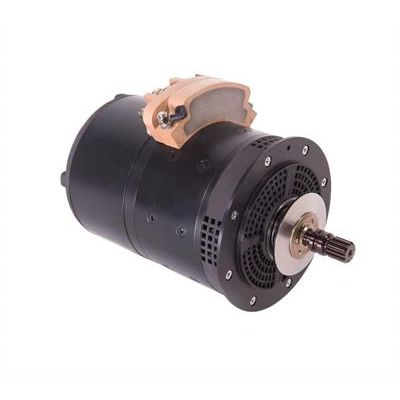

PBS - Model EMG-200 -Starter Generator

• Low weight
• Long service life
• Possible short-term overload
• Good starting properties
• Self-cooling system
• High operating flight altitude
• Designed in accordance with RTCA-DO-160 and MIL-STD-704F, MIL-STD-810E

• Technical parameters: Values
• Output voltage: 28 V DC
• Rated load current: 200 A
• Rated output power: 6 kW
• Speed range: 8,000-12,150 revolutions/min.
• Overspeed: 15,000 revolutions/min. (5 minutes)
• Maximum speed control: 13,000 revolutions/min.
• Minimum speed control: 7,600 revolutions/min.
• Operating flight altitude: 10,000 m
• Operating temperature: -55 to 85 ⁰C
• Starter properties:
• Maximum DC voltage: 28 V
• Maximum input current: 1,000 A with a drop to 800 A within 1.5 s
• Reliable operating lifetime:
• Hours of operation: 4,500
• Number of starts: 9,000
• Mechanical properties:
• Weight: 9.4 kg
• Diameter and length: 134 x 188 mm
• Direction of rotation: Both rotation directions are possible

Long service life

EMG-200 stands out with its service life of up to 4,500 hours of operation.

High starting power and operation at high altitudes

The PBS starter generator can handle 9,000 startups and an operating altitude of 10,000 m.
