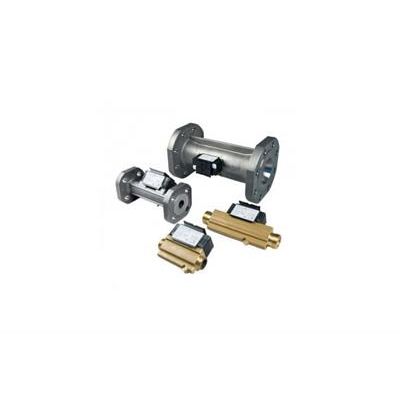

iCenta - Model Ultraflow 54 -Static Flow Sensor
The Ultraflow 54 is a static flow sensor based on the ultrasonic measuring principle. It is primarily used as a volume flow sensor recommended for use with the MULTICAL calculators (Multical 602/402/403) and has been designed for heating and cooling applications where water is the heat-bearing medium. Using a bi-directional ultrasonic technique for measuring the volume, this sensor has proven long-term stability and accuracy.
Most popular related searches
static flow sensor
flow sensor
low flow meter
ultrasonic flow sensor
flow meter
ultrasonic sensor
cooling water application
water heating
cooling water
- Ultrasonic flow sensor
- For flow from 0.6 m³/h up to 100 m³/h
- Compact design
- Static meter with no moving parts
- Large dynamic range
- No wear
- Exceptionally accurate
- Longevity
Specification Detail of the Ultraflow 54; standard model:
- Pipe Size - DN15 – DN125
- Material Body - Dezincification resistant brass, stainless steel, Thermoplastic
- Flow Range - 0.6m³/h – 100³/h
- Accuracy - N/a
- Operating Temp Range - 15 to 130°C
- Pressure Range - PN16, PN25 flange
- Outputs & Comms - NA
- Insertion / Inline - Inline
- Fluid Type - Clean water
- Applicable Liquids - Water
- Power - Battery 3.65 VDC, D-Cell Lithium230 VAC +15/-30%, 48..52Hz
- Approvals - MID-2004/22/EC. DK-0200-MI004-008.
Specification Detail of the Ultraflow 54; larger model:
- Pipe Size - DN150-DN300
- Material Body - Stainless steel, W.no. 1.4307
- Thermoplastic, PC 10% GF
- Flow Range - 150m³/h – 1000³/h
- Accuracy - NA
- Operating Temp Range - 2 to 150°C
- Pressure Range - PN16, PN25 flange
- Outputs & Comms - NA
- Insertion / Inline - Inline
- Fluid Type - Clean water
- Applicable Liquids - Water
- Power :
- Battery 3.65 VDC, D-Cell Lithium230 VAC +15/-30%, 50 Hz
- 24 VAC ±50%, 50 Hz
- Approvals :
- MID-2004/22/EC.B-Module DK-0200-MI004-008
- D-Module DK-0200-MID-D-001
