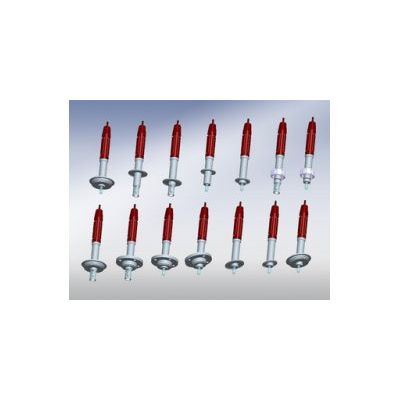

SI Analytics - Model CHEMfit -Static Sensor Holders

A product range for the permanent installation of sensors with Pg 13.5 on welding sockets and a length of 120 mm and a diameter of 12 mm. Different types of process connections such as Ingold DN25 (CHEMfit 310) , TriClamp (CHEMfit 311), Varivent or NEUMO Biocontrol (CHEMfit 312). Also available in 15° model for installation in vertical pipelines (CHEMfit 315). Designed according the hygenic criteria to fulfill the requirements for food and pharmatceutical production. High variation of sealing material (also EPDM with FDA and USP VI permit).Stainless steel AISI 316L with optional  surfaces smaller than 0.8 μRa or 0,4 μRa. Up to 10 bar and 140°C.
