Global Odor Control Technologies (GOC)
Products
GOC - Model NC-200 - Stationary ...

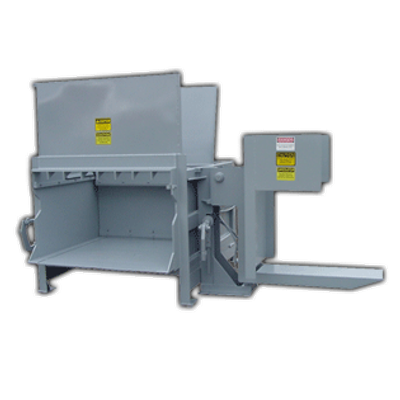

GOC - Model NC-200 -Stationary Compaction Equipment

FromGlobal Odor Control Technologies (GOC)

SHARE

Container Features: 5/16" steel plate floor with 3" structural channels. 25" steel plate sides with 3"x 2"x .25" structural steel tubing. Breaker bar 6"x 6"x 1/2" with retaining teeth. 5" steel plate hydraulic cylinder mounts. Replaceable .5" UHMW polyethylene wear bars on all sides and bottoms for a smooth quiet and near frictionless operation. Weatherproof control panel and power pack. Removable rear access panel. Container guide rails. Biodegradable hydraulic fluid.

Most popular related searches

biodegradable hydraulic fluid

hydraulic cylinder

compaction container

hydraulic control system

Electric / Hydraulic Features

(PLC) Controlled Power Unit
E-Stop Button
Automatic Single Cycle
Auto/Manual Selector
Key Lock On/Off Switch
Multi-Cycle
80% - 100% Full Lights
Automatic Shutdown with Auto Safety Retract
15' Remote
Low oil sensor shutdown
Inlet Fluid Strainer
Left or Right Side Hydraulic Connections

Receiver Container

4 yd Rear Load
6 yd Rear Load
8 yd Rear Load
4 yd Front Load
6 yd Front Load
8 yd Front Load

This Equipment Conforms to all ANSI Z 245.2 Safety Standards.

Overall Length: 84"
Overall Width: 73"
Overall Height: 57"
Compactor Capacity: 2 Cubic Yards
Platen Area: 60"x44"x36"
Charge Opening: 44"x60"
Ram Penetration: 12"
Twin Cylinder: 4"x42"x2.5"
Line Pressure: 2000 PSI
Max Line Pressure: 2500 PSI
Max Ram Force: 63000 LBS
Cycle Time: 45 Seconds
Fluid Capacity: 35 Gallons
Pump: 10.5 GPM
Motor: 10 HP/Tri-Volt, 3 Phase
Loading Height: 51"
App. Shipping Weight: 4450 LBS

5 HP 220V 1 phase
Fluid reservoir heater
Driver pack out
Open hopper (for loading dock or ground loading)
Enclosed doghouse with door and interlock
Walk on or drive on deck with 42" safety rails
Side loading hoppers
Through-the-wall chutes
