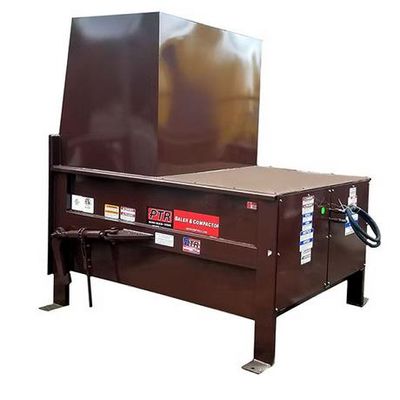

PTR - Model TP-750 -Stationary Compactor
The TP-750 was specially designed for applications with space constrictions. It utilizes a .75 cubic yard compactor that attaches to either a 6 or 8 Yard Rear or Front Load container. Its 4-inch cylinder produces over 20,000 lbs of normal force. It is a powerful force for your tight space applications. All components are built using heavy-duty structural steel components and welded by AWS certified technicians. This unit has total U.L. approval, standard 3 button controls (On/Off key switch, mushroom stop, auto reverse) and a 13’ Sealtite.
Most popular related searches
stationary compactor
front load container
hydraulic cylinder
rear load container
hydraulic pump system
pump system
- Charge Box Capacity : .75 Cu Yd
- Clear Top Opening (L x W) :36” x 37”
- Capacity Per Hour : 58.7 cy/hr
- Electrical Motor : 208 / 230 / 460 : 3 Phase
- Electrical Control Voltage : 120 VAC
- Cycle Time : 36.8 sec
- Total Normal Force : 20,000 lbs
- Total Maximum Force : 25,000 lbs
- Normal Ram Face Pressure : 27.2 psi
- Maximum Ram Face Pressure : 34 psi
- Hydraulic Pump Capacity : 6.5 gpm
- Normal Pressure : 1600 psi
- Maximum Pressure : 2000 psi
- Hydraulic Cylinder : 4” Bore
- Hydraulic Cylinder : 2.5" Rod
- Weight : 3,500 lbs
