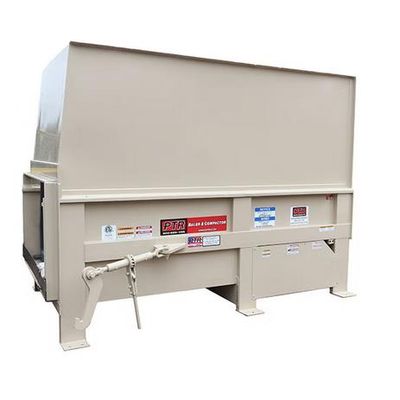

PTR - Model TP-2000 -Stationary Compactor
When the TP-2000 Series was designed, we challenged our engineers to see how long the machines could hold up in the field. We are pleased to say those machines originally built in the early 70’s are still performing. All components are built using heavy-duty structural steel components and welded by AWS certified technicians. This unit has total U.L. approval, standard 3 button controls (On/Off key switch, mushroom stop, auto reverse) and a 13’ Sealtite.
Most popular related searches
- Charge Box Capacity : 2 Cu Yd
- Clear Top Opening (L x W) : 40” x 60”
- Capacity Per Hour : 58.7 cy/hr
- Electrical Motor : 208 / 230 / 460 : 3 Phase
- Electrical Control Voltage : 120 VAC
- Cycle Time : 65 sec
- Total Normal Force : 51,000 lbs
- Total Maximum Force : 65,000 lbs
- Normal Ram Face Pressure : 28 psi
- Maximum Ram Face Pressure : 36 psi
- Hydraulic Pump Capacity : 15 gpm
- Normal Pressure : 1800 psi
- Maximum Pressure : 2300 psi
- Hydraulic Cylinder : 6” Bore
- Hydraulic Cylinder : 3.5" Rod
- Weight : 4,500 lbs
