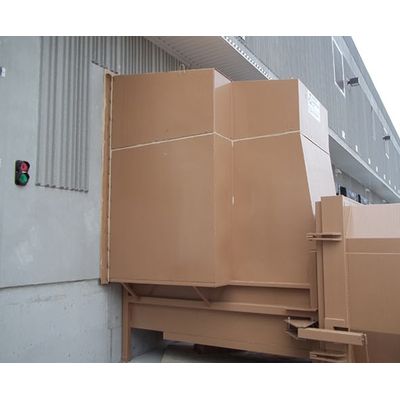

Tri-Pak - Model T-200 Series -Stationary Compactors
The T-200 series is designed for dry waste applications and is available as a standard duty, heavy duty and extra-heavy duty unit depending on the application. Generally the T-200 standard duty is ideal for the retail environment, the T-200HD for the commercial sector and the T-200XHD for the industrial and municipal sectors. Each system can be customized to suite the client’s needs and can be supplied as part of a 100% turnkey system. Where space is limited, the T-200X model delivers the same benefits as the T-200 unit; but with with an overall smaller footprint.
Most popular related searches
odor control system
hydraulic lifting
OSHA regulations
OSHA regulated
safety barrier
building monitoring
pressure gauge
stationary compactor
odor control
waste drying
- UL/CSA Approved Design
- Meets/exceeds ANSI Z245.2 regulations
- Meets/exceeds OSHA regulations
- PLC “flex-design” based control systems
- NEMA 4 rated enclosure
- Internal timers prevent system run-on
- Self-diagnostic indicators
- 24-volt controls
- Adjustable multi-cycle timer
- 75% and 100% full light
- Auto-alert maintenance mode
- Heavy duty oil-tight pushbutton controls
- Key lockable start pushbutton
- Advance-warning light
- Fluid-filled pressure gauge
- Oil heater
- Odour control system
- Open hopper (for top or loading dock)
- Fully enclosed hopper with door
- Through the wall installation kits
- Walk-on or drive-on decks
- Safety gate
- Hydraulic cart-dump systems
- System monitor: SCADA panel (add-on panel or integrated upgrade) provides cell-based monitoring of all systems including container fullness, safety circuit devices, container positioning, hydraulic system devices including reservoir fullness, oil temperature and system in-use time
- Remote start/stop station
- Auto-start system (photo-eye or sonic sensor)
- Wireless remote control
- Biometric interface
- HMI based operator interface for tie into building monitoring systems
- Single phase and three phase power units
- Hi-lo hydraulic pumps for reduced cycle time applications
- Regen circuit for improved hydraulic fluid circulation
- Over-sized oil reservoirs to accommodate ancillary devices and improved heat sink
- Oil cooler for high duty cycle applications
- Bio-degradable oil
- In tank oil heater
- Sonic sensors for oil fullness monitoring
- Low temperature oil (as low as -60 Celsius is available)
- Compactor upgrades
- Download documentation
- Custom chute systems
- Custom weather enclosures
- Drive-on deck systems (certified up to 20,000 lbs.)
- Tongue and grooved floor designs
- AR plate floors and sides for reduced press head/compactor shell wear
- Pad-less set-up for installation on asphalt
- Custom hydraulic cart tipping systems
- Light curtain-based safety sensors
- Custom steel safety barriers
- Custom hydraulic lift systems
