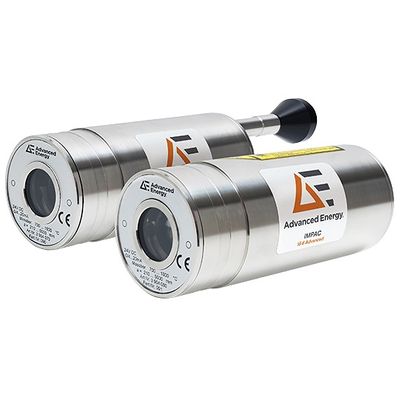

Impac - Model IGA 6/23 Advanced Series -Stationary, Digital Pyrometer for Non-Contact Temperature Measurement on Metals, Ceramics
Highly accurate digital pyrometer with focusable optics and integrated LED display. Temperature measurements, e.g. on metals, in ranges between 50 and 1800 °C. The digital Impac IGA 6/23 Advanced are fast pyrometers for non-contact temperature measurement on metals, ceramics, or graphite in temperature ranges between 50 and 1800 °C. For optimal match to the application, the instruments are equipped with high-end optics with manual focus. The series feature integrated four-digit LED displays that indicate current measuring temperatures or set measuring distances. The pyrometers are available with laser-targeting light, viewfinder, or TV camera module. The instruments can be connected to a PC through an RS485 to USB connection, enabling you to make parameter adjustments using the InfraWin software. The software can be used for temperature indication, data logging, and further analyzing of complete temperature processes.
- Wide temperature ranges for flexible process adaptation
- Highest accuracy and repeatability in its class
- Fully digital core for sub-ranging and adopted analog output
- Response time of 0.5 ms for very fast and highly dynamic processes
- High-end optics with manual focus capability
- 4 digit LED display
- Robust, stainless steel sensor for harsh environments (IP65/NEMA4)
- Use in harsh environments thanks to a robust, stainless steel sensor (IP65/NEMA4)
- Easily measure fast and dynamic processes
- Connect to your PC via an RS485 to USB connection
- Select a laser targeting light, viewfinder, or TV camera module
- Operational temperature range (°C): 50 and 1800 °C (3 ranges in between)
- Spectral Range (µm): 2 to 2.6
- Measurement Uncertainty (°C): From 0.3% oR + 2 °C
- Optics (mm): Focusable optics
- FOV (minimum spot size) (mmm): Min 350:1 (0.6)
- Alignment / Sighting: Built-in laser aiming light, through-lens sighting, or color TV camera
- Interface / Output (mA): 0/4 to 20 mA
- Exposure Time t90 (ms): 0.5 ms
- Ambient Temperature (°C): 0 to 70
- Resolution (°C): 0.1
- Display: LED, 4 digit matrix, 5 mm high temperature signal or measuring distance
- Protection Class: IP 65 IEC 60529 (value in mated condition)
- Power Supply (mV): 24000
- Emissivity: 0.050 to 1.000
- Weight (kg): 0.6
- Housing: Stainless steel
- Transmittance: 0.050 to 1.000 in 0.1% steps
- Connection: 12-pin connector
- Operating Position: Any
- CE-label: According to EU directives about electromagnetical immunity
- Isolation: Power supply, analog output, and digital interface are galvanically isolated from each other
- Wavelength Repeatability (pm): 0.15 % oR + 1 °C
