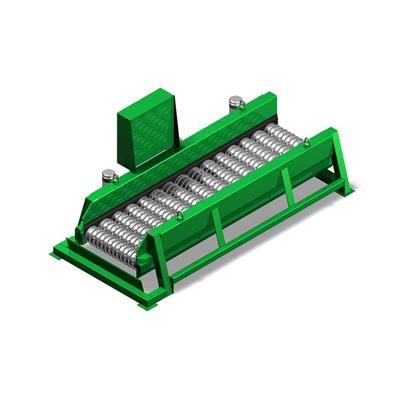

Komptech Flowerdisc - Stationary Disc Screen
The Flowerdisc represents a further technology for the screening of pre-shredded commercial, bulky and bio-waste, a technology which combines high throughput, selectivity and resistance to contamination. Material is transported by shafts with rugged steel discs working on the disc screen principle. Movable jacketed pipes positioned between the discs prevent seizures and blockages by contraries. Performance: 11 kW (Mains). Throughput: up to 40 t/h. Screen decks: 1.
Built to Last
Sturdy design allows smooth, low-wear operation
Flexible
Modular design for flexible configuration in stationary systems
Komptech Plus
High throughput, low energy expenditure
Your Choice
Designed for separation of oversized particles from commercial waste, bulky waste, household waste and fresh bio-waste
Drive:
- Electrical power input (kW): 11
Screening Unit:
- Fine fraction (mm): <80-100
- Coarse fraction (mm): >80-100
- Coarse screen area (m²): 5.5 / 7.3
- Coarse screen width (mm): 1200
- Coarse screen lenght (mm): 4560 / 6080
Max. Throughput:
- Dependent on material (t/h): 100
