Art`s Way Manufacturing Co., Inc

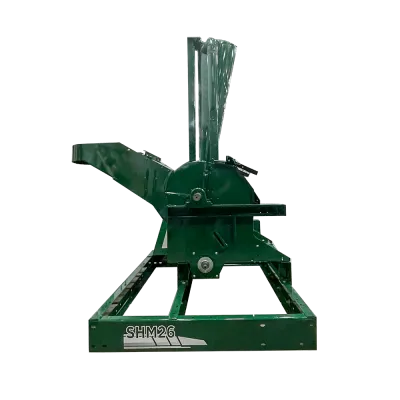

Arts Way - Stationary Hammer Mill
The Stationary Hammer Mill by Art's Way offers precision grinding for feed and grain processing. Designed for static operation, it features a robust build ideal for farms or production facilities requiring permanent installation. The mill operates efficiently with a power requirement of 40-60 hp and an electric motor capable of achieving 2,800 to 3,000 RPM. Its dimensions facilitate substantial grain processing, with a total footprint of 106 inches by 83 inches and a hopper size of 8 inches. The mill harnesses mechanical controls for simplicity and reliability, ensuring consistency in product output. Its grinding capabilities and capacity to process a diverse array of grains and forage make it an essential tool for enhancing feed throughput and optimizing farm operations. With comprehensive product literature and manuals, users can easily integrate the mill into their existing frameworks, ensuring smooth operation and maintenance.Most popular related searches
- 26 inch hammer mill
- Electric or PTO Drive
- Stable Auger out base
- Capacity of Mixing Tank: N/A
- Width of Mill: 26 in.
- Height (with tire size): 106 in.
- Overall Length: 83 in.
- Width with Auger Feeder: 68 in.
- Weight with Auger Feeder: 1,350 lbs.
- Reversible Hammers: 96
- Screen Area: 780 sq. in.
- PTO Drive: 1000 RPM, Electric
- Operating Speed of Mill: 2,800-3,000 RPM
- Horsepower Requirement: 40-60 hp
- Auger Feeder Length: N/A
- Auger Feeder Diameter: N/A
- Auger Feeder Type: N/A
- Diameter of Mixing Auger: N/A
- Discharge Auger Type (lift & swing): Mechanical
- Discharge Auger Tube Diameter: 8 in. in Hopper
- Unload Auger Reach 60° Angle: N/A
- Unload Auger Reach 3 ft. Extension 60° Angle: N/A
- Unload Auger Reach 6 ft. Extension 60° Angle: N/A
- Supplement Hopper Size: N/A
- Tires: N/A
- Ground Clearance: N/A
