CellaTemp - Model PK 11 -Stationary Pyrometer

FromPyrometer Instrument Company LLC

SHARE

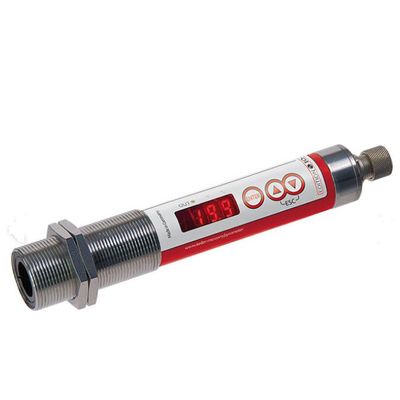

The CellaTemp PK 11 is a pyrometer for fast, non-contact and wear-free temperature measurement from a safe distance in the temperature range between 0 and 1,000 °C.

Most popular related searches

temperature monitoring

non-contact temperature monitoring

contact temperature monitoring

color measurement

pyrometer instrument

field monitoring

Measuring range 0 to 1? °C
switching output universally configurable
high optical resolution due to precision lenses
IO-Link interface
all parameters can be set via pushbutton on the sensor or via interface from the plant control system
test function can be triggered by pushbutton or control signal
very simple mounting via M30 central thread
large and bright LED display

Version: CellaTemp PK 11 AF 1
Measuring range: 0 - 1000 °C
Measuring field: 11 mm
Focal distance: 0,3 m
Shape of the measurement area: round
Measuring principle: one-colour
