CellaTempModel PA 10 -Stationary Pyrometer

SHARE

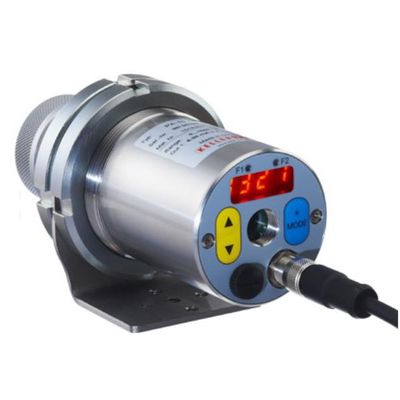

The CellaTemp® PA 10 is a digital pyrometer for measuring temperatures from 0 to 1,000 °C. Due to the very large measuring span, it can be used very universally for a variety of applications, primarily on non-metallic measuring objects. A through-the-lens sighting or a laser pilot light is available for easy and precise sighting of the measuring object. The LED display on the back can be read from a great distance. In normal operation, the current measuring temperature is displayed. If current parameters are changed via the rear buttons, the changed settings are shown on the display.

Most popular related searches
  • Measuring range 0 to 1,000 °C
  • focusable interchangeable lenses for exact adjustment of the measuring distance
  • broadband anti-reflective precision lenses
  • LED display can be read from a great distance
  • test current output for the diagnostic function
  • standard feature: digital input/output as well as two analogue outputs and USB/RS 485 interface
  • Version: CellaTemp PA 10 AF 1 /D
  • Measuring range: 0 - 1000 °C
  • Focal distance: 0,3 m - ∞
  • Shape of the measurement area: round
  • Distance ratio: 50 : 1
  • Objective: PZ 10.01
  • Measuring principle: one-colour
  • Sighting option: Through-the-lens-sighting
