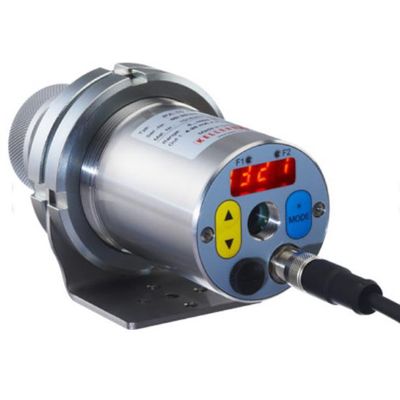

CellaTemp - Model PA 13 -Stationary Pyrometer
The CellaTemp® PA 13 series is a compact digital pyrometer for non-contact temperature measurement in flame-heated furnaces. Due to the selective spectral range, water vapour and CO2 in the pyrometer`s field of view have no influence on the measurement results, even from great measuring distances. A through-the-lens sighting or a laser pilot light is available for easy and precise sighting of the measuring object. The LED display on the back can be read from a great distance. In normal operation, the current measuring temperature is displayed.
Most popular related searches
non-contact temperature monitoring
contact temperature monitoring
pyrometer
temperature monitoring
digital pyrometer
pyrometer instrument
furnace
- Measuring range 500 to 1,600 °C
- focusable lenses for exact adjustment of the measuring distance
- broadband anti-reflective precision lens
- LED display can be read from a great distance
- test current output for the diagnostic function
- standard feature: digital input/output as well as two analogue outputs and USB/RS 485 interface
- Version: CellaTemp PA 13 AF 1 /D
- Measuring range: 500 -1600 °C
- Focal distance: 0,8 m - ∞
- Shape of the measurement area: round
- Distance ratio: 45 : 1
- Objective: PZ 15.03
- Measuring principle: one-colour
- Sighting option: Through-the-lens-sighting
