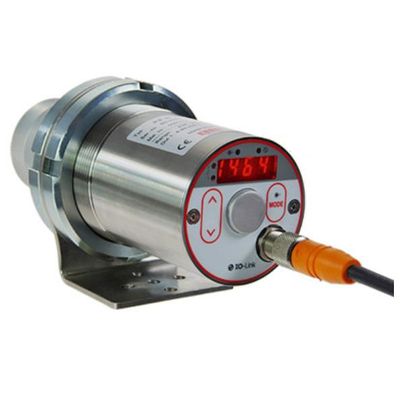

CellaTemp - Model PX 13 -Stationary Pyrometer
The CellaTemp PX 13 was developed especially for temperature measurements in flame heated furnaces. Thanks to the selective spectral range of 3.9 µm, water vapour and CO2 existing in the pyrometer´s field of vision have no effect on the measuring results, even when measuring from large distances. This allows precise measurements through flames and combustion gases.
Most popular related searches
- Measuring range 500 to 1,600 °C
- modern IO-Link interface
- focusable interchangeable lenses for exact adjustment of the measuring distance
- broadband anti-reflective precision lenses
- LED display can be read from a great distance
- all parameters and functions adjustable via keyboard
- test current output for the diagnostic function
- 1 analogue output and 2 switching outputs
- source freely configurable
- ATD function for automatic temperature detection
- Version: CellaTemp PX 13 AF 1 /D
- Measuring range: 500 -1600 °C
- Focal distance: 0,8 m - ∞
- Shape of the measurement area: round
- Distance ratio: 45 : 1
- Objective: PZ 15.03
- Measuring principle: one-colour
- Sighting option: Through-the-lens-sighting
