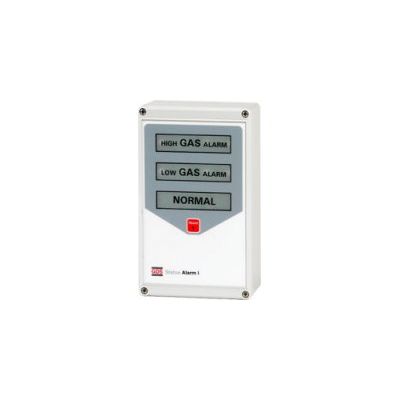

GDS - Model C469 -Status I Indicator Panel - Remote Alarm Units
The status alarm is a remote module lending itself to a wide variety of warning and alarm applications, the module provides a combined audible and ‘text selectable’ illuminated window indication. The audible sounder may be muted at any time with the visual alarm indicator remaining on until the alarm condition has cleared.
Most popular related searches
- Safe : Green indicator ON
- Caution :
- (Low Alarm) Amber indicator
- ON - flashing + sounder
- Green indicator OFF
- Gas :
- (High Alarm) Red indicator
- ON - flashing + sounder
- Green indicator OFF
- Fault : Green indicator OFF
- Indicators : Long life high power LED`s
- Consumption : Maximum power per signal input 1 watt
- Option : Window text to customer requirements
- Size : 200 x 120 x 60
- Protection : IP65
- Sounder :
- Mutable 98 dB @ 30cm
- Mute bypass option (Jumper from A to B)
- Permanent sounder mute-option (remove Jumper JP2)
- Remote mute terminals
- Outputs :
- Low alarm relay contact S.P.C.O. (Not resetable until gas signal has cleared)
- High alarm relay contacts S.P.C.O. (Not resetable until gas signal has cleared)
- Common alarm relay contacts D.P.C.O. (Resets when mute button pressed)
- Option - not resetable until gas has cleared
- All contacts rated 5A @ 230v AC
